Product Overview
A tee turns a straight run of pipe into a branch. Medium enters one end and leaves through the opposite end, while a third outlet takes part of the flow away at 90 degrees — or, run the other way round, brings two lines together into one. We supply these fittings within a wider range that covers welded steel pipe as well as stainless steel pipe fittings — elbows, reducers, caps and crosses — so a distributor can build a complete branch-and-direction stock from one source. Grades are 201, 304, 316 and duplex stainless steel, and sizes run from 1/2'' to 48''. As steel pipe manufacturers and exporters, we hold that range together across grades and sizes instead of offering one narrow band, which matters when a distributor is filling a container and does not want three suppliers for one fitting family. Two decisions come before the joint and the finish are even discussed: how the branch is shaped, and how the body is made. Neither can be changed once the fitting is cut and formed, so both belong on the enquiry. Whichever combination you settle on, the fitting arrives bored through with a clean internal surface. That bore is what keeps flow steady at the branch and leaves fewer ledges for scale, sediment or product residue to settle on. The range is catalogued as No. SS2605204. Equal tees in 304 and 316 cover most everyday branch work; reducing sizes are normally bought against a line list. Feature | What it means in service --- | --- Excellent corrosion resistance | The passive layer on 304, 316 and duplex stands up in water, chemical and marine service without a coating to maintain. High strength and durability | The body carries line pressure and site handling without deforming at the branch, where the stress concentrates. Smooth internal surface | A clean bore keeps flow steady through the branch and leaves fewer ledges for scale or sediment to settle on. High temperature and pressure resistance | Grade and wall are chosen for the duty, so hot water, steam and process lines can be served with the same fitting type. Easy welding and installation | Weld-ready ends and a defined joint preparation shorten fit-up and help the weld come out sound. Long service life | Stainless does not corrode through the way carbon steel does, so the fitting stays in service as long as the line around it. Suitable for industrial and sanitary applications | One part serves general industrial pipework and the cleaner regimes of food, beverage and pharmaceutical plants, with the finish chosen to match.
Tee Types and Branch Options

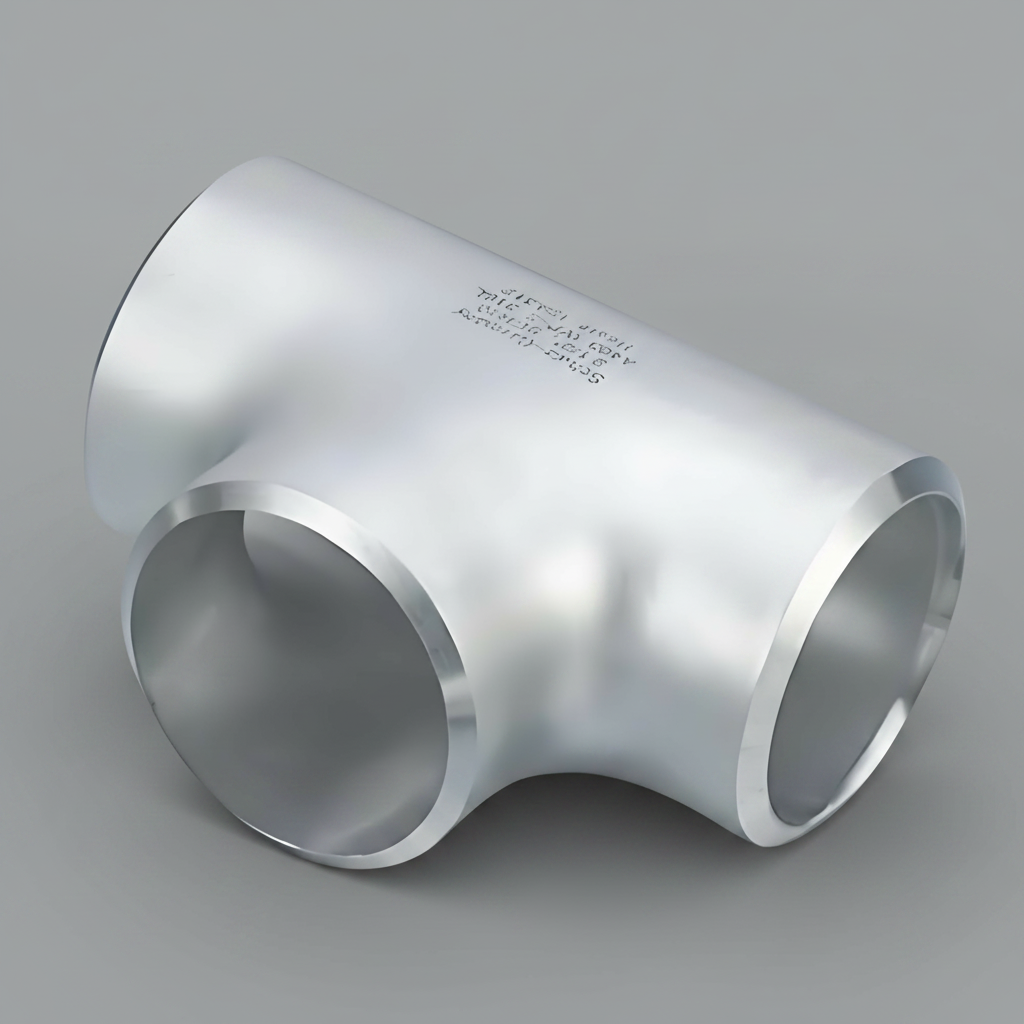

- Equal tee — the run and the branch share one bore, so a header can feed a line of the same size. This is the part behind most branch connections on water, utility and process pipework, and the one stockists hold across the widest size band.

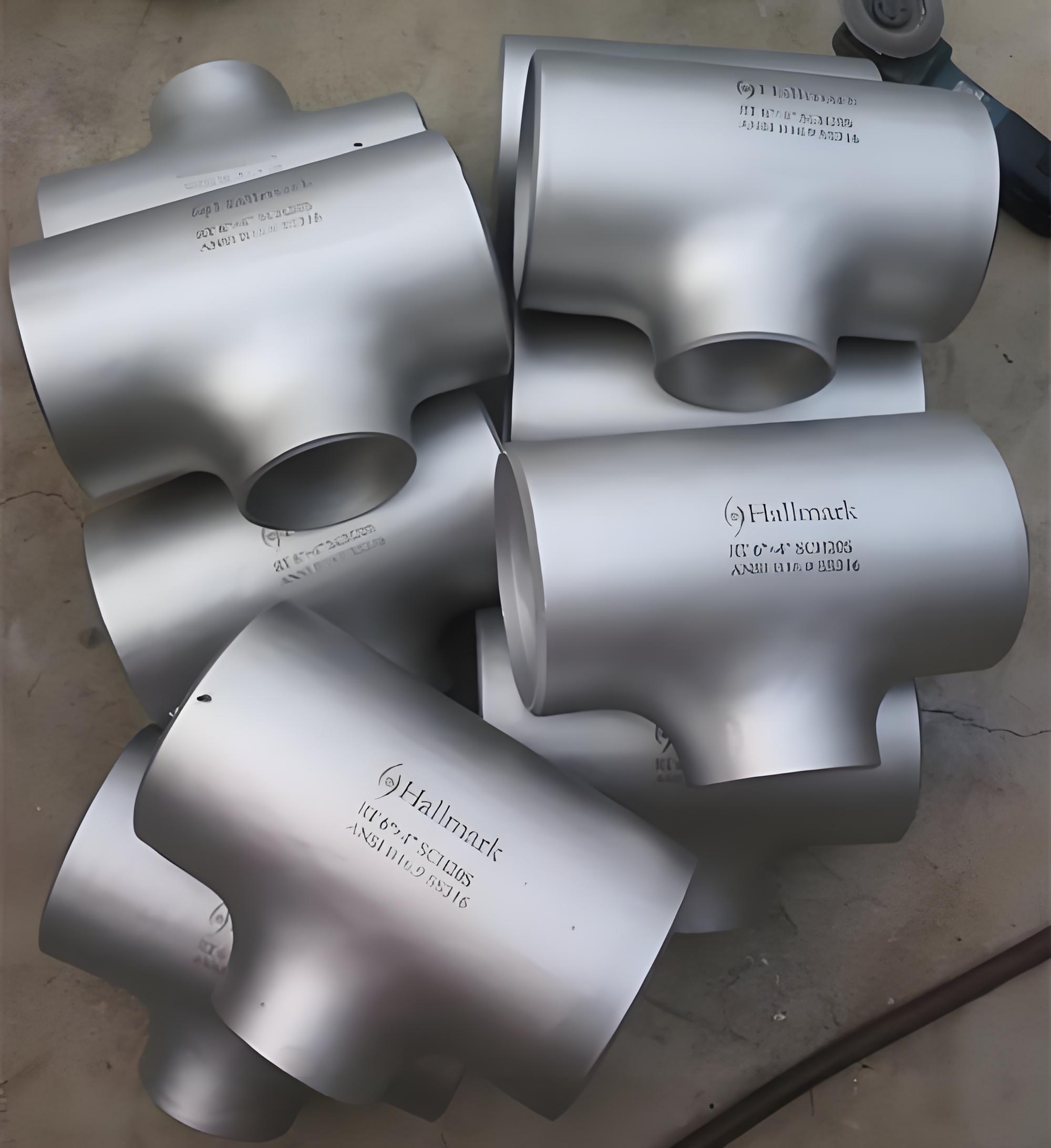

- Reducing tee — the run stays at full size while the branch steps down to a smaller outlet. Used where a large main feeds a smaller service line, a drain, an instrument connection or a single item of equipment, so a full-size valve and pipe are not carried all the way to a small take-off.
- Longitudinal-weld-free tee — the body is formed from pipe with no longitudinal weld, so no weld runs through the fitting. Choose it where the line works at higher pressure, where the wall has to stay continuous, or where a longitudinal weld would be the place corrosion and fatigue start.
- Welded tee — fabricated from welded steel pipe and plate. The practical choice in the larger diameters and where the duty does not call for a body with no longitudinal weld, and it keeps cost sensible on big reducing sizes.
- Run against branch — an equal tee is quoted with one size, a reducing tee with two. Give both figures whenever the branch is smaller than the run, otherwise the outlet is left to interpretation.
- Wall match — the body is supplied to suit the schedule of the pipe it joins, so the bore lines up and the weld preparation meets the pipe end squarely instead of leaving a step inside the line.
Connection Types
Butt weld. The tee is welded end to end into the line, leaving a flush bore with no internal shoulder. It is the joint specified on most process and utility lines and on stainless steel water pipe mains, and the right one when the run has to stay smooth inside and the joint will not be opened again.
Socket weld. The pipe ends slip into sockets in the fitting and are filleted around the outside. Quicker to fit on smaller sizes, and common on utility and instrument piping where a small internal step does no harm.
Threaded. Threads cut into the outlets let the fitting be screwed onto a threaded steel pipe and taken apart again with a wrench — the practical option on small service connections, air lines and repair work where hot work is not allowed.
Flanged. Flanges are machined on the outlets so the tee bolts straight to a flanged valve, pump or vessel nozzle and can be unbolted for maintenance. Standard where the branch connects to equipment that may have to come out.
The four can be combined on one fitting — a butt weld run with a threaded branch, for instance — when the line asks for it. Tell us the pipe end you are joining and we match the preparation to it.
Applications
| Industry | Where the tee is used |
| Oil & gas | Branch take-offs on gathering, process and utility lines, splitting flow to meters, manifolds and flare headers. |
| Water supply systems | Distribution mains and risers on a stainless steel water pipe network, where a branch feeds a street, a building or a hydrant. |
| Chemical processing | Reagent feed and transfer lines, in the grade chosen for the chemical being handled and the finish chosen for the plant. |
| Food & beverage | Product and clean-in-place lines, in the polished or pickled finish the plant's cleaning regime calls for. |
| Pharmaceutical | Utility and process lines that need a smooth, cleanable bore and a surface that can be inspected easily. |
| Construction projects | Riser and plant-room pipework in commercial, municipal and infrastructure buildings, from main risers down to the threaded steel pipe drops that serve individual fixtures. |
| Marine engineering | Deck, ballast and cooling lines, where salt water makes 316 or duplex the sensible grade choice. |
Surface Finish
- Pickling — an acid treatment that strips heat tint and scale and restores the passive layer across the surface. Specify it where the fitting will be welded and corrosion resistance at the joint matters, as it does on any stainless steel water pipe line.
- Sand blasting — produces a uniform, low-glare surface and lifts light scale and contamination. The finish to pick when a batch has to look consistent and a bright surface would be too reflective for the location.

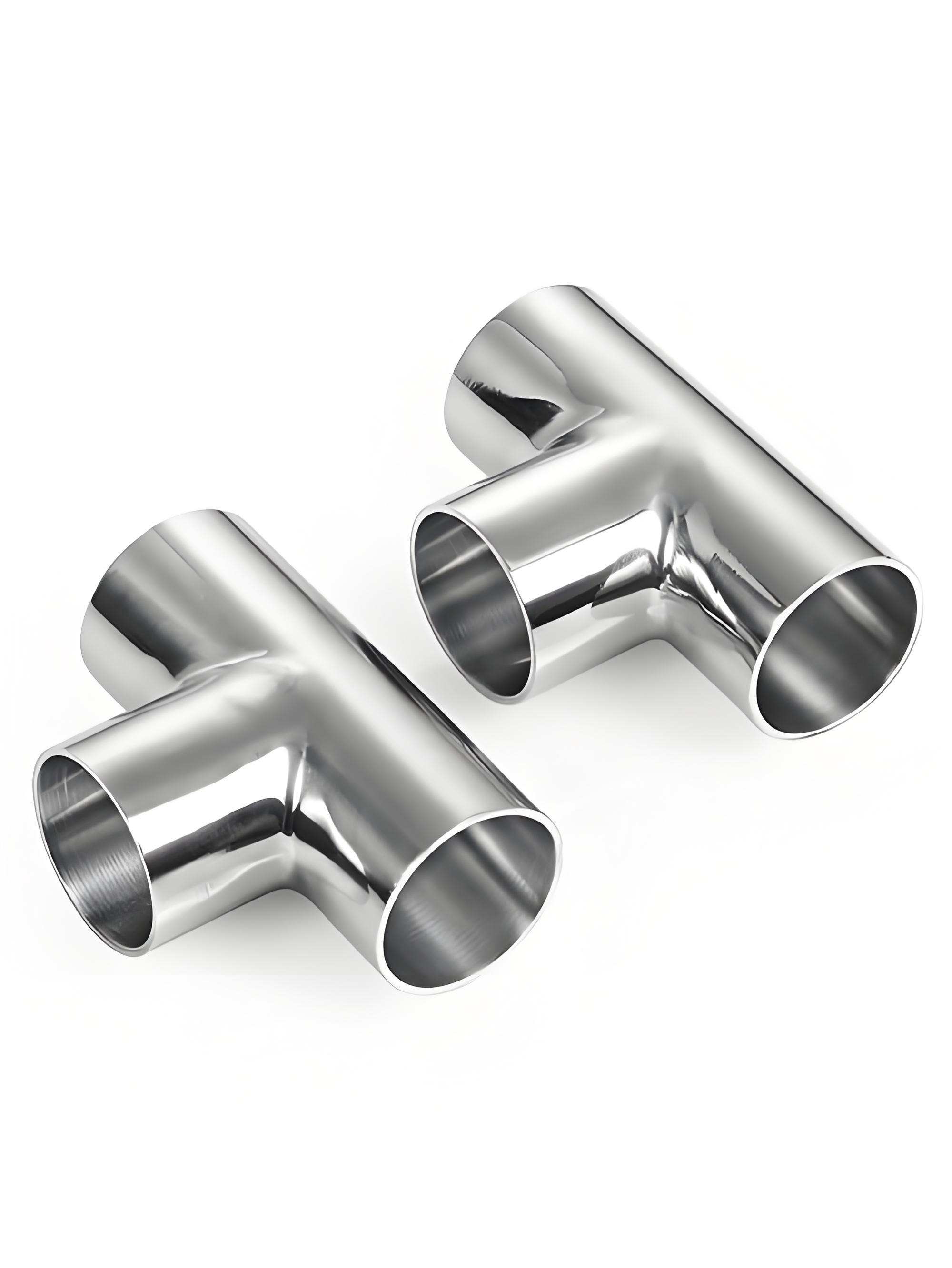

- Mirror polished — a high-reflectivity finish with a smooth, cleanable face. Used on exposed pipework and on lines in food, beverage and pharmaceutical plants where the surface has to be washed down easily.
- Matte finish — a satin, non-reflective surface that hides handling marks and fingerprints. A sensible default for visible architectural and industrial work where a bright finish would show every touch.
- Checking before the batch runs — if appearance matters to your own customer, ask about seeing the finish on a sample first. Matte and mirror read very differently under site lighting, and these stainless steel pipe fittings have to look right in place rather than on a screen.
Packaging and Export Packing
- Each tee is slipped into a plastic bag, so the pickled, polished or matte surface arrives without workshop dust or scuffs on it.
- Bagged fittings are packed into wooden cases, which take the knocks in transit instead of the beveled ends, threads and flange faces.

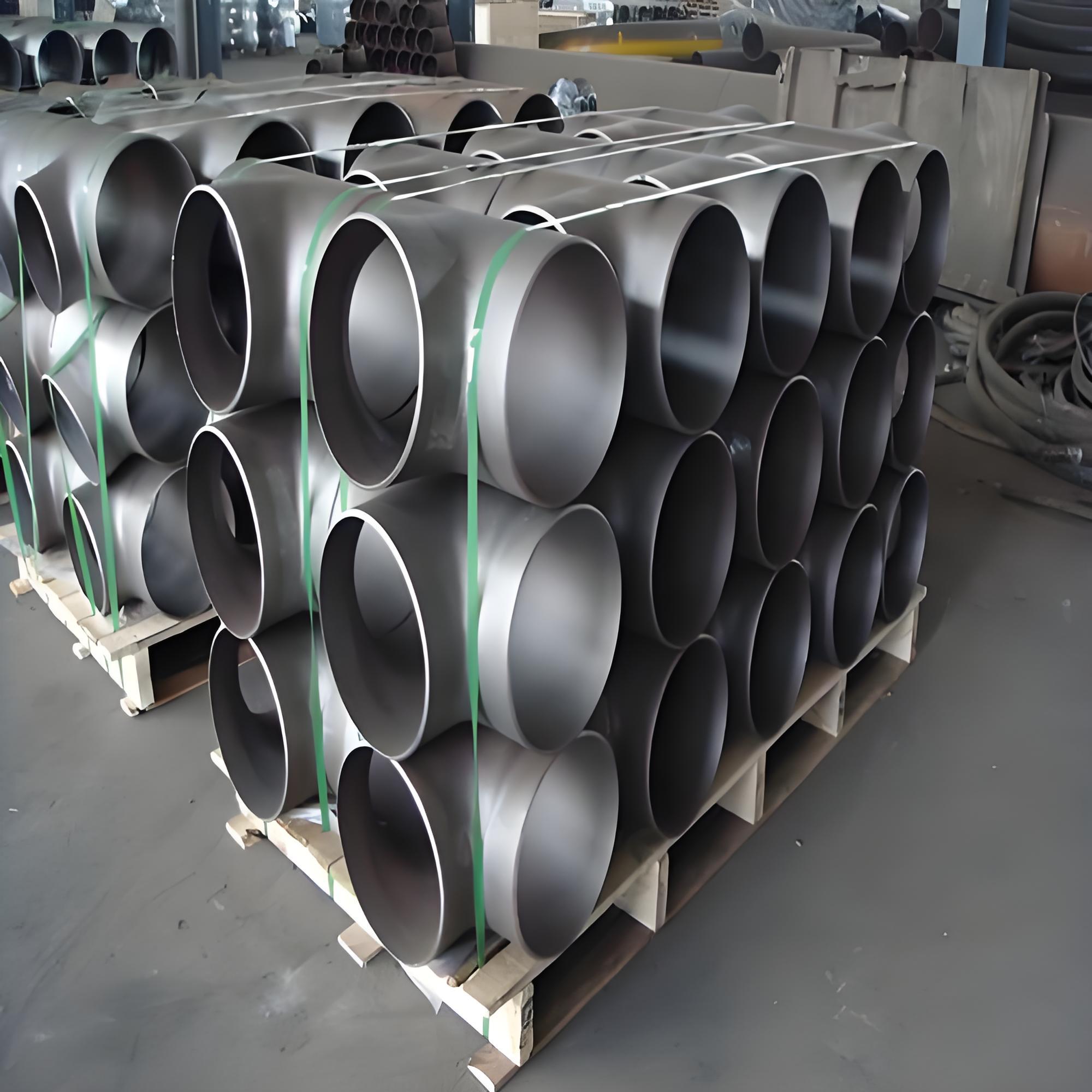

- Cases are stacked onto plywood pallets, so the consignment stays stable under forklift handling at the port and again in your own warehouse.
- Pallets are strapped and the cases marked, so size, grade and quantity can be read without breaking the packing open.
- The consignment is packed to standard export seaworthy practice — the packing a stainless steel pipe supplier normally ships against on container and break-bulk orders.
- If tees, elbows, reducers and welded steel pipe are going into one container, say so at order stage. A steel pipe supplier builds case sizes and pallet heights around the mix, and it is far easier to plan before the cases are closed than after.
Ordering and Delivery
- Confirm the grade first. The medium and the environment decide it, and it is the one choice that cannot be changed once the fitting is made.
- Give the size as run against branch. An equal tee needs one figure; a reducing tee needs two, and both belong on the enquiry.
- Choose the joint, and the finish with it.
- State the quantity, the delivery point and the documents your market or project needs, so the quotation covers everything in one go.
- Lead time, shipping terms and payment are quoted against the actual order rather than published as a standing figure. Steel pipe manufacturers quote to the size, grade and quantity in front of them, and that is how we price. Ask your sales contact to confirm the figures with the quotation, and to answer on sample availability if you want to see the finish before the batch is released.
- Send those details through and we will quote against them. If anything above is still open, contact us and we will work through it with you before the order is placed.
Supply Chain & Delivery Assurance
Ruihuang Pipe Technology Co., Ltd. has been manufacturing since 2009 and has been listed on the Shanghai Stock Exchange since December 2019 (stock code 100868). Five brands, more than 30 branches and sales networks across China, and over a hundred projects delivered together with Chinese enterprises give us the reach to gather the categories we supply into one order and one container, pack for export, plan production around your peak season, and ship from Shanghai to Southeast Asia, the Middle East, South Asia and West Asia on terms you prefer.
FAQ
Which grade should I choose — 201, 304, 316 or duplex?
201 is the cost-led choice for dry or lightly corrosive service. 304 covers general water, utility and food-plant work. 316 adds molybdenum and is the usual pick wherever chlorides appear — coastal air, brackish water, salt. Duplex is for the harder duties where higher strength and chloride resistance both matter. We make these stainless steel pipe fittings in all four grades, so grade is a selection rather than a limit; tell us the medium and the environment and we will point you to one.
How do I state the size when I order a reducing tee?
Put the run size first and the branch size second, and keep the two figures separate — a 6'' run with a 3'' branch is not the same order as the reverse. If the enquiry passes through a stainless steel pipe supplier, an agent or a project buyer, write both figures on the line list rather than one nominal size, so the branch cannot be read as the run.
Will the tee match my pipe schedule?
Whether the body is made from pipe without a longitudinal weld or from welded construction, the bore and the weld preparation are set so the fitting lines up with the pipe end without leaving a step inside the line.
Do I need to re-pickle after welding?
Yes, at the weld. Welding burns the passive layer away and leaves heat tint around the joint, and that tint is where corrosion starts if it is left alone. Pickle or mechanically clean the weld zone once the joint has cooled, and the fitting will behave like the rest of the line. The pickled finish supplied is a starting condition, not a substitute for post-weld treatment.
How do I check the fittings when they arrive?
Each fitting carries its grade and size on the body, so the case marking, the delivery note and the part itself can be checked against each other before the material goes into stock. Do that on receipt: a stainless steel pipe supplier can put a wrong grade right while the consignment is still identifiable, and nobody can once the branch is welded into the line.
Are the threads NPT or BSP?
Tell us the standard your market works to and the tee is threaded to match. Confirm it at enquiry stage rather than assuming from a drawing, because the two thread forms look similar at a glance and do not interchange. State the standard next to the size whenever a threaded steel pipe connection is part of the order.
Can these tees handle hot water and steam?
The grade and wall are chosen for the duty, and the range is made to resist elevated temperature and pressure. What settles it is the working temperature, the pressure and the medium, so send those three figures and the tee is quoted to suit rather than picked from a general-purpose list. Do not put a stock tee on a high-temperature line without that check.
