Shortlisting ductile iron pipe manufacturers is really a test of verifiable process control rather than brochure wording. This page turns that into six checkpoints you can put to any ductile iron pipe supplier, and shows how Ruihuang answers each one across its DN80–DN2000, PN6–PN25 ductile iron pipe range.
Both routes can deliver pipe. The difference shows up in who owns the process, who signs the records, and how quickly a specification change can be confirmed.
A producer runs casting, heat treatment, lining and coating in a documented sequence. Ask which of those stages sit inside the plant and which are subcontracted, so you know exactly where to audit.
On repeat orders you want the same standard, diameter and lining each time. Ask how a supplier locks those variables between batches and what changes trigger a new approval.
Diameter, length and end type are engineering decisions. DN80–DN2000 coverage, 6 m standard or custom lengths and three joint families are quicker to confirm with the party making the pipe.
Ask who issues the material and test records, and whether they can be tied to your purchase order and heat number. A direct route usually shortens that chain.
Work through the six checkpoints in order. Each card gives you the question to ask; the detail modules below show what a solid answer looks like.
Ask: how is incoming charge material specified, and how is melt chemistry verified before pouring?
See the detailAsk: what graphite form is targeted, and how is nodularity measured and recorded?
See the detailAsk: what is the treatment cycle, and how is each load traced to the pipes it produced?
See the detailAsk: how is lining thickness controlled, and which external coating is specified for the soil condition?
See the detailAsk: at what pressure, for how long, and at what sampling frequency is each pipe tested?
See the detailAsk: which records travel with the shipment, and can they be traced back to your order?
See the detailThese two questions decide whether the pipe behaves as ductile iron at all. Get the answers documented before you discuss price.
| What to ask | What a solid answer looks like |
|---|---|
| Which standard governs your casting and chemistry? | The answer should name the standard explicitly — ISO 2531, EN 545, EN 598 or GB 13295 — rather than a general phrase such as "international standard". |
| How is melt chemistry verified before pouring? | Expect a described sampling step and a result recorded against the heat number, not a verbal assurance. |
| What graphite form are you targeting? | Spheroidal (nodular) graphite is what separates ductile iron from grey iron. Ask how that form is checked and how often. |
| Is the casting done in-house or subcontracted? | A clear split between internal and subcontracted stages tells you where your audit effort belongs. |
| What happens to a failed chemistry or nodularity result? | A defined hold, re-test or reject route shows the control is a real gate rather than a formality. |
Heat treatment develops the ductile matrix. Lining and coating decide how the pipe survives the decades after it is buried.
Centrifugal casting forms the pipe wall to the ordered diameter and length.
A controlled thermal cycle follows casting. Ask for the cycle and the load record.
Cement mortar lining (CML) is applied internally for corrosion protection and smooth flow.
Externally, a zinc coating is finished with bitumen or epoxy, depending on the specification.
Drying, visual and dimensional checks complete the sequence before dispatch.
The specified internal lining, applied for corrosion protection and smooth flow. Because it sits directly against the water, ask how lining thickness and cure are controlled, and how the finished surface is inspected.
The standard external build. Which finish is correct depends on soil corrosivity and the backfill environment, so confirm the specification against your site conditions rather than assuming a default.
Offered for aggressive environments. Treat this as a project decision: if the ground is aggressive, ask what evidence supports the coating choice and how joints and cut ends are protected on site.
Fix the lining and coating combination in writing before the order is placed. A late change to the coating specification is far more disruptive than agreeing it at quotation stage.
Testing proves the pipe; documentation proves the batch. Ask for both, and ask who signs them.
Ask for the test pressure, the hold duration and the sampling frequency. A defined regime you can quote in your own quality plan is worth more than a single pass certificate.
Ask which mechanical properties are tested, how often, and which laboratory or in-house bench performs the work. Note the name and role of the person signing the result.
Confirm that nominal diameter, length, lining thickness and coating continuity are checked before release, and that the checks are recorded rather than only performed.
Ask for the record pack that travels with the shipment and confirm it can be traced to your order number and heat numbers. This is the file your own client will ask to see.
Attach these six checkpoints to your enquiry. Suppliers who answer them in writing are easier to compare than suppliers who answer them in conversation.

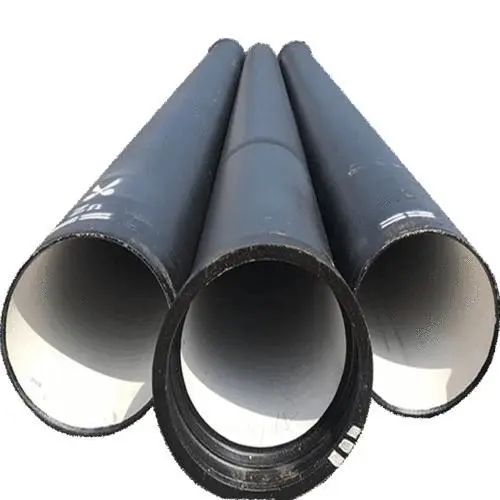

A high-strength, corrosion-resistant pipe widely used for water supply, sewage and industrial fluid systems. Its mechanical properties and durability make it suitable for high-pressure and long-distance pipeline applications.
| Product name | Ductile Iron Pipe (DI Pipe) |
| Item number | CS26052212 |
| Standard | ISO 2531, EN 545, EN 598, GB 13295 |
| Nominal diameter (DN) | DN80 – DN2000 (customizable) |
| Pressure rating | PN6 – PN25 |
| Length | 6 m standard, or customized per request |
| Internal lining | Cement mortar lining (CML) for corrosion protection and smooth flow |
| External coating | Zinc coating with bituminous or epoxy finish |
| Optional coatings | Epoxy or polyurethane coatings for aggressive environments |
| End types | Flanged ends; push-on (mechanical joint) ends; socket and spigot ends |
| Packaging | Wooden or steel supports, protective wrapping, bulk shipment options available |
Once a supplier has cleared the checklist, the next decision is specification. Use the scenario you are actually building against, not a generic default.
Where the line terminates at a pump, valve or manifold, a flanged end is specified. The flange face and type on the connecting equipment must be agreed at the same time as the pipe order — see the flange options below.
| Scenario | Specification to confirm | Buyer decision |
|---|---|---|
| Municipal water supply | Cement mortar lining (CML) internal; zinc with bituminous or epoxy external; DN sized to design flow; PN matched to working pressure | CML is the default for potable networks because it supports corrosion protection and smooth flow. |
| Sewage and wastewater | Confirm the internal lining and external coating against the effluent and ground chemistry; consider epoxy or polyurethane for aggressive environments | Aggressive media and soils shorten service life when the coating is underspecified. |
| Industrial fluid transportation | Fluid compatibility, PN within the PN6–PN25 band, and the end type that suits the plant connection | Process fluids vary widely, so lining choice is a project decision rather than a catalogue default. |
| Fire-fighting and irrigation | Push-on (mechanical joint) or socket and spigot ends; 6 m standard length or a custom length for the run | Long, fast-laid runs favour joints that assemble without specialist equipment. |
| High-pressure or long-distance mains | Pressure class at the upper end of the PN6–PN25 range; flanged or mechanical joints at tie-ins | Higher pressure classes plus secure joints reduce risk where repair access is difficult. |
| Aggressive ground or coastal soil | External zinc with epoxy finish, or the optional epoxy or polyurethane coating | The external barrier, not the pipe wall, is usually what determines buried service life. |

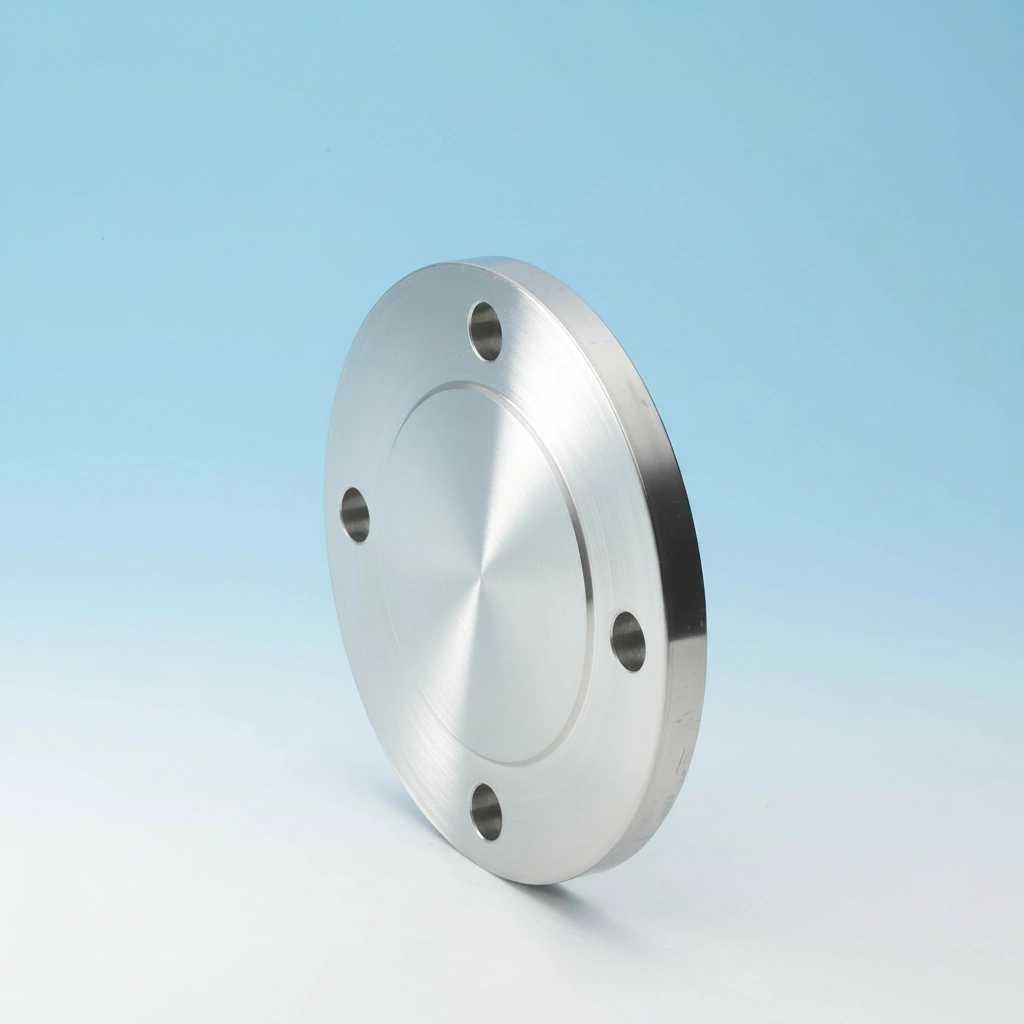

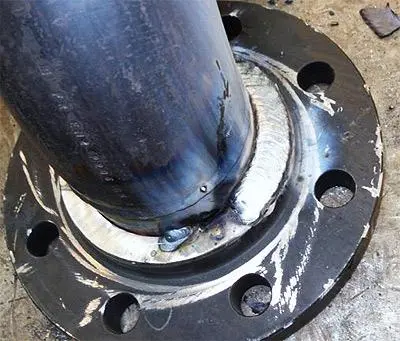

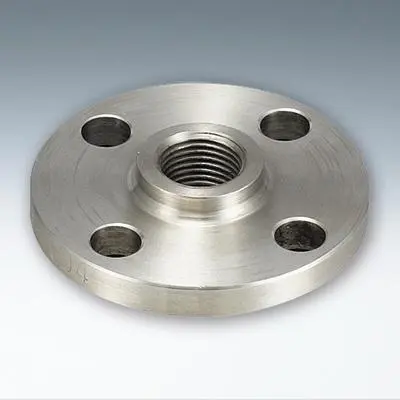

For bolted connections to valves, pumps and manifolds.
Mechanical joint ends for fast assembly on buried mains.
A standard joint family for conventional pipe laying.
Send the project details once and you get a quotation, a packing plan and the record pack you asked for — rather than a price that changes after the specification is clarified.
Prefer to review the pipe first? The full specification, packaging notes and the datasheet download are available on the Ductile Iron Pipe product page.
Keep adjacent product options together for a faster catalog comparison.
Six checkpoints: raw material and chemistry control, centrifugal casting and spheroidization, heat treatment, internal lining and external coating, hydrostatic and mechanical testing, and documentation with traceability. Each one gives you a question to ask and an answer to look for.
The product page lists iso 2531, en 545, en 598 and gb 13295. Confirm which of these your project actually requires before ordering, since the applicable standard depends on the destination market and the designer's specification.
Nominal diameter runs from dn80 to dn2000 and is customizable, with pressure ratings from pn6 to pn25. Standard length is 6 m, and custom lengths are available on request.
Internal cement mortar lining (cml) provides corrosion protection and smooth flow. Externally, a zinc coating is finished with bitumen or epoxy. Epoxy or polyurethane coatings are available as options for aggressive environments.
Flanged ends, push-on (mechanical joint) ends, and socket and spigot ends. The right choice depends on the connecting equipment and how quickly the line has to be assembled on site.
Send your diameter, pressure rating, length, end type, medium and standard through the contact us page. Email goes to marat@sh-ruihuangpipe.com and the sales line is 13918289814. A datasheet download is also available from the product page.
