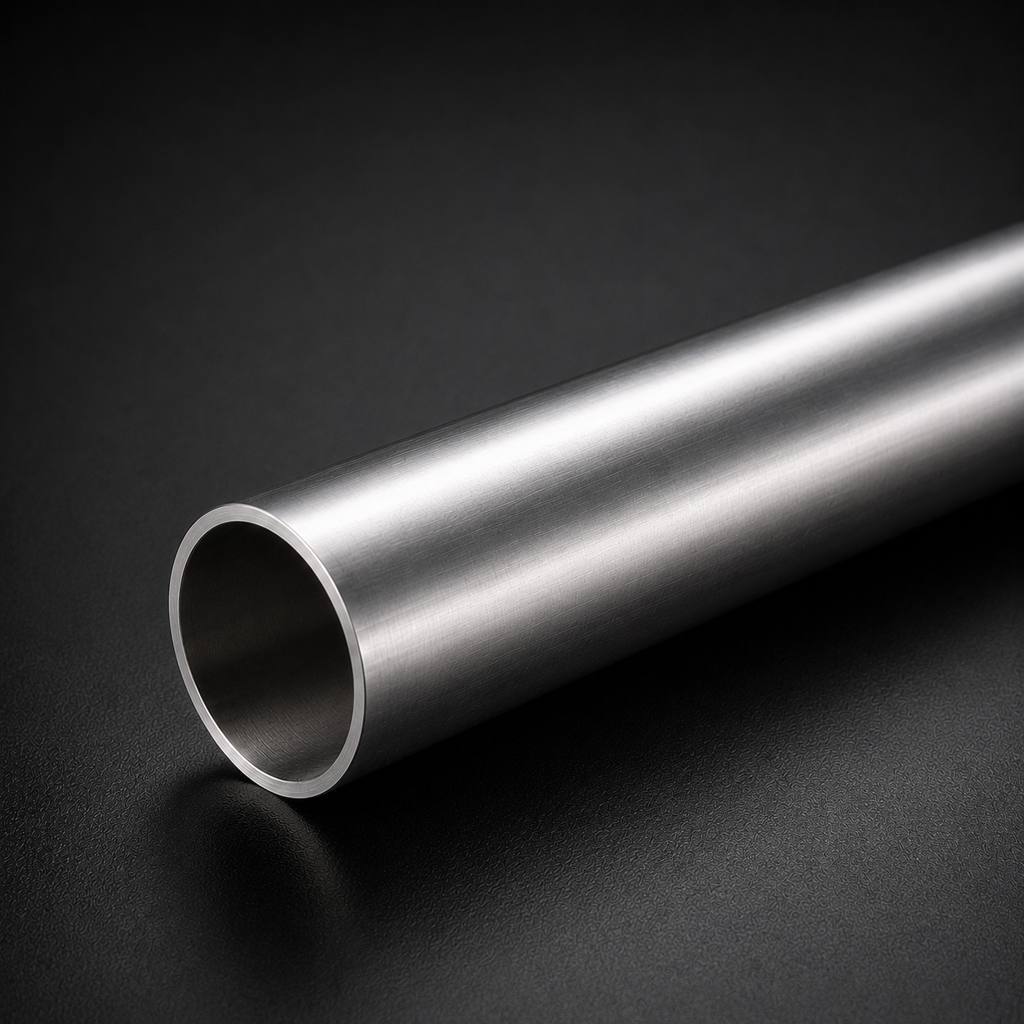

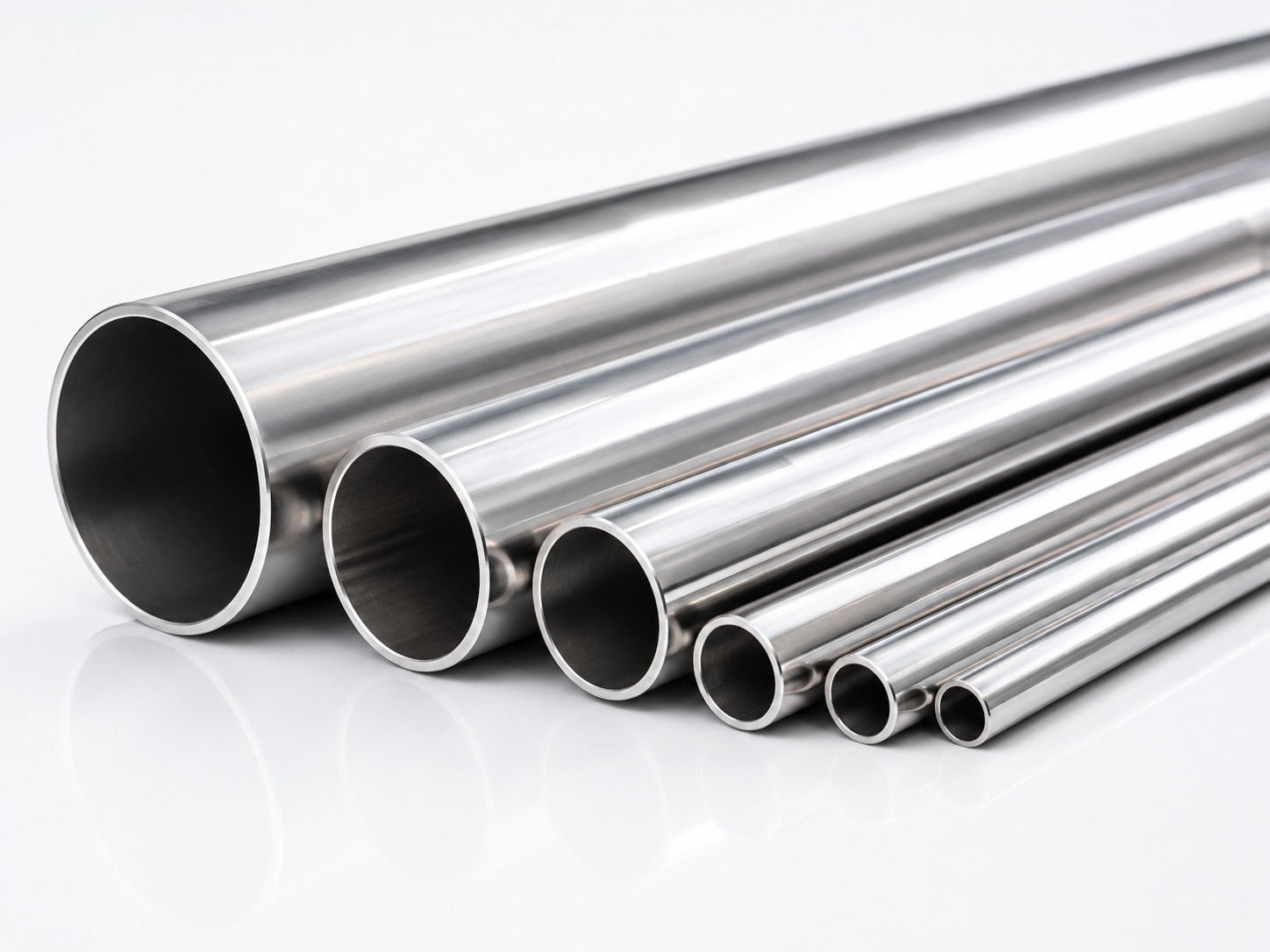

Stainless Steel Welded Pipe

No.RHSS05181
Welded stainless steel pipe for process, water and construction lines, available in 201, 304, 304L, 409L and 430 with BA to NO.8 finishes.
Download
View all downloads
  • Stainless Steel Seamless Pipe,MY SHOP,Stainless Steel Seamless Pipe
  • Stainless Steel Welded Pipe,MY SHOP,Stainless Steel Seamless Pipe
  • Stainless Steel Seamless Pipe,MY SHOP,Stainless Steel Seamless Pipe
  • Stainless Steel Seamless Pipe,MY SHOP,Stainless Steel Seamless Pipe
  • Stainless Steel Seamless Pipe,MY SHOP,Stainless Steel Seamless Pipe
  • Stainless Steel Seamless Pipe,MY SHOP,Stainless Steel Seamless Pipe
  • Stainless Steel Seamless Pipe,MY SHOP,Stainless Steel Seamless Pipe

Description

Product Overview

Welded stainless steel pipe starts as flat strip rather than a solid billet. The strip is formed into a round section, seam welded, the weld bead is worked back to the wall, and the finished tube is sized and annealed so the seam is not a soft point in the line. That route gives a tube with consistent wall thickness and a clean surface along its whole length, at a lower cost than a drawn tube of the same grade and size. We supply it in 201, 304, 304L, 409L and 430 against ASTM A312, A249 and A269, in the size range and lengths set out in the specifications below. Surfaces run from a plain 2B through BA, NO.4, NO.8 and HL, so the same pipe can disappear into a utility run or stay visible as a handrail or a hygienic transfer line. As a stainless steel pipe supplier we mostly ship to distributors and fabricators who need one grade held consistently, bundle after bundle, rather than a single special length. Where pressure, temperature or a named specification pushes you towards a drawn product, say so early and we will quote that range instead. - Process and utility lines in petrochemical and chemical plants. Cooling water, utility air, low-pressure transfer and tank-farm piping where the grade handles the chemistry and the line is not in severe cyclic service. - Food, beverage and biopharmaceutical areas. Transfer lines, washdown stations, frames, guards and skids where a smooth 2B or BA bore cleans down and does not trap product. - Water supply and drainage works. A stainless steel water pipe for treatment works, pump rooms, headers and outlet structures, where coated steel would rust through; confirm any local approval your authority requires before you specify. - Construction and municipal engineering. Balustrades, canopy and façade framing, drainage grilles and street furniture, where the finish is as important as the grade. - Fabrication shops building spools and skids. Tube cut, welded and fitted with stainless steel pipe fittings into assemblies; a consistent wall thickness and a clean weld zone are what the fitter actually needs. - Distributor stock for contractors. Buyers restocking for repeat project work need a stainless steel pipe supplier who can repeat the same grade, size and finish order after order, not a one-off lot.

Welded vs Extruded

  • Welded is the right answer for most lines. If the service is process water, washdown, municipal water and drainage, food-area piping, or structural and architectural work at moderate pressure and temperature, a welded steel pipe gives you the corrosion resistance of the grade without paying for a drawn tube.
  • The seam is not left raw. Strip is formed and welded, the bead is worked back, and the tube is annealed and sized, so roundness and wall thickness stay consistent along the length and the weld zone is not a corrosion trap.
  • Go with a drawn product when the duty is severe. High pressure, high temperature, thermal cycling, fatigue duty, or a specification that names a drawn product is a different purchase; our drawn stainless steel pipe range is the one to quote against.
  • Read the wording, not just the standard. A312, A249 and A269 can be met in either construction; it is usually the project's own line item, not the standard, that decides. Check whether the document requires a drawn product or simply names a grade and size.
  • Vibration and thermal movement. On lines that pulse or move repeatedly, the drawn wall gives you one less feature to argue about at inspection; do not trade that away to save on the tube.
  • If you are unsure, send the duty. Medium, pressure, temperature and whether the line will be welded on site are enough for any steel pipe supplier to say which construction suits, and it is cheaper to ask than to re-specify after the pipe has shipped.

Manufacturing & Inspection

  1. Raw material check. Hot-rolled or cold-rolled stainless coil and strip is checked against the ordered grade before anything is cut.
  2. Slitting. The coil is slit to the strip width that matches the finished tube diameter, so the weld lands squarely.
  3. Edge preparation. Strip edges are trimmed and squared; a burr or a wavy edge here shows up later as a weak weld.
  4. Forming. The strip is rolled into a round hollow section and the edges are brought together under pressure.
  5. Welding. TIG, laser, high-frequency or ERW welding is chosen for the diameter and wall thickness; thin walls favour high-frequency and laser, heavier walls favour TIG.
  6. Weld bead treatment. The internal and external bead is worked back so the seam does not stand proud of the surface, which matters on a polished or hygienic bore.
  7. Sizing. The tube is rolled to its final outside diameter and roundness, and the wall is checked.
  8. Solution annealing and heat treatment. The tube is heat treated so the weld and heat-affected zone regain the corrosion resistance that welding takes out of them. A project that specifies a stainless steel pipe with no weld seam is usually acting because it cannot rely on that recovery step, so treat annealing as part of the product rather than a finishing detail.
  9. Inspection and packing. Dimensions, surface and weld are checked, the length is confirmed, and the pipe moves to packing.

Steel Grades

  • 304, the default for process and water service. Balanced corrosion resistance in normal industrial, municipal and food-area atmospheres, and the grade most distributors keep moving. - 304L, where the joint has to survive the weld. Lower carbon keeps the weld and heat-affected zone from losing corrosion resistance, which matters when the tube is welded on site and cannot be annealed afterwards. - 201, cost-controlled for dry or mild service. Lower nickel and higher manganese; sensible for indoor frames, trims and light-duty lines, not for continuously wet or chloride-bearing duty. - 409L and 430, ferritic grades for less demanding duty. Lower alloy cost where a fully austenitic grade is more than the job needs; keep them to dry, moderate-temperature service and non-aggressive atmospheres. - Compare like with like. Ask for outside diameter, wall thickness, grade and finish in writing on every quotation; a stainless steel pipe quoted only as 304 cannot be compared with another steel pipe supplier's offer.

Surface Finish Options

Finish changes what the pipe looks like, how easily it cleans down, and how much protection it needs on the way to you.

2B is the mill finish most industrial orders run with: cold rolled, heat treated and skin passed, smooth and matte, uniform enough for fabrication and general process work. BA, bright annealed, is heat treated in a controlled atmosphere instead of being pickled, which leaves a bright, reflective surface that suits food, pharmaceutical and visible architectural work. NO.4 is a ground finish with a uniform linear grain that flattens small handling marks and is the usual choice where the pipe stays on show. NO.8 is polished to a mirror and is kept for display and high-visibility trim, because it shows every fingerprint. HL is a finer hairline, common on balustrade and lift work.

Two practical points. The more polished the finish, the more the packing matters, so tell us the finish before we pack; a mirror surface needs film and padding that a 2B tube does not. And if the pipe will sit next to existing panels, ask for a sample of the finish first, because BA and NO.4 from different mills do not always read the same in daylight.

What you see in a photograph is a finish, not a grade: a welded steel pipe in 304 can be supplied as 2B or as NO.8, and the two look nothing alike.

Size Range & Lengths

Outside diameter and wall thickness are separate choices, and they move independently: the same outside diameter in two wall thicknesses is effectively two different products, with different weight per metre, different pressure capability and different weld settings.

At the small end, a 6 mm to 20 mm tube suits instrumentation runs, sampling lines, small handrail sections and light frames, where the tube is handled and bent more than it is pressured. Mid-range sizes, roughly 25 mm to 150 mm, carry most of the process, water and structural work and tend to be the sizes distributors hold. At the large end, 200 mm and above is usually a project purchase: a stainless steel water pipe header, a large duct or a structural member, where the wall is chosen for stiffness and the length is planned around transport.

Length is 6 m as standard, and other lengths can be produced to order. Longer lengths mean fewer field joints but heavier bundles and more awkward handling on site; shorter lengths move through a plant more easily but add welds. If you are unsure which way to go, tell us what lifting and handling equipment the destination has.

State the size as outside diameter × wall thickness, not as a nominal bore. A nominal size such as 2 inch can map to several different outside diameters depending on the standard in use, and that is where most disputes between a buyer and a stainless steel pipe supplier begin.

Infographic of industrial stainless steel pipe and sanitary tube size ranges

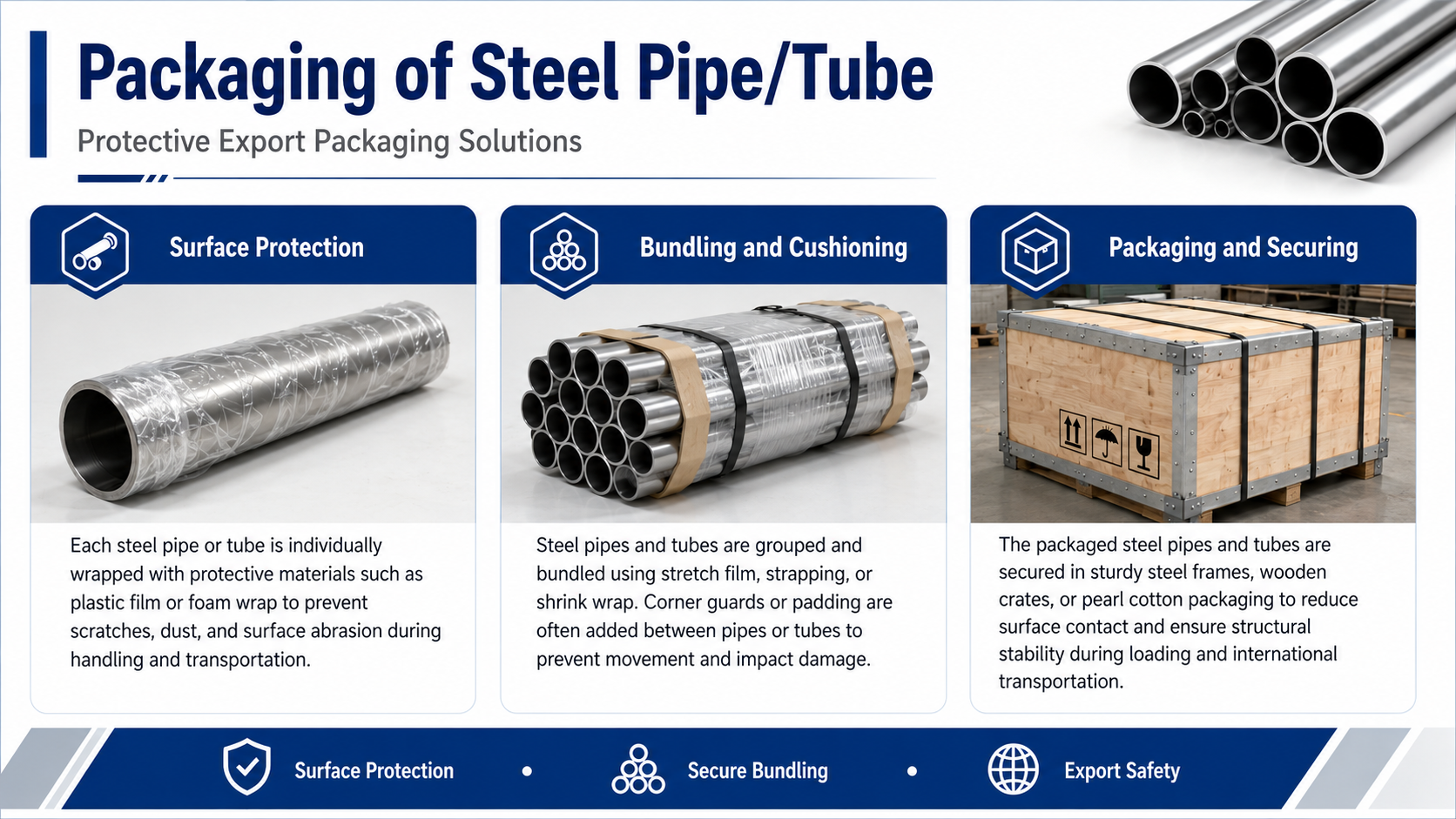

Infographic of protective export packaging methods for steel pipes and tubes

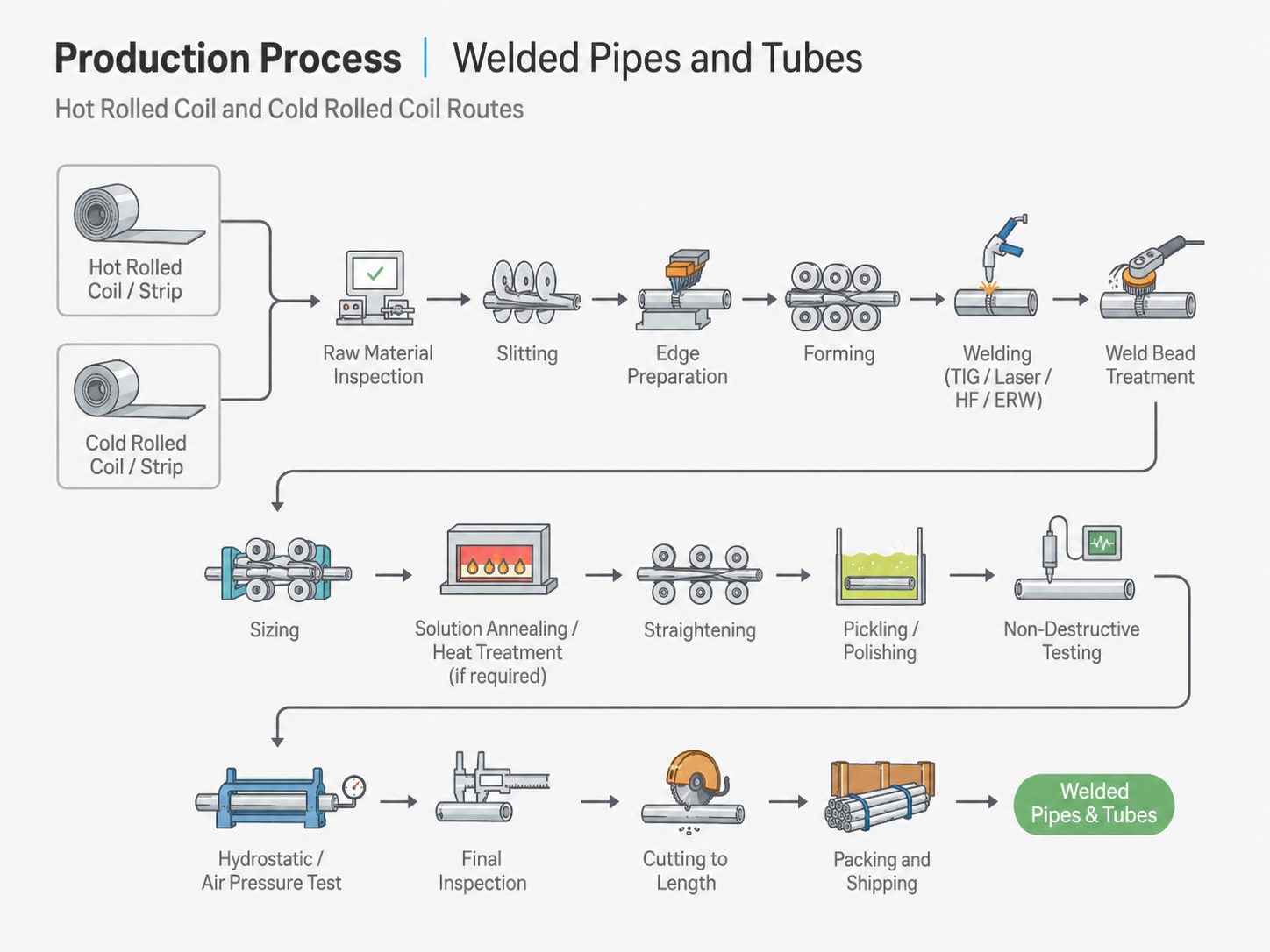

Infographic of welded steel pipe and tube production process routes

Specifications

PropertyValue
Grade201, 304, 304L, 409L, 430
StandardASTM A312, A249, A269
ConstructionWelded steel pipe, strip formed and seam welded, weld bead treated
Outer diameter6 mm - 630 mm
Wall thickness0.5 mm - 20 mm
Length6 m standard, other lengths to order
Surface finishBA, 2B, NO.4, NO.8, HL
FormRound hollow section, straight lengths
Item no.RHSS05181

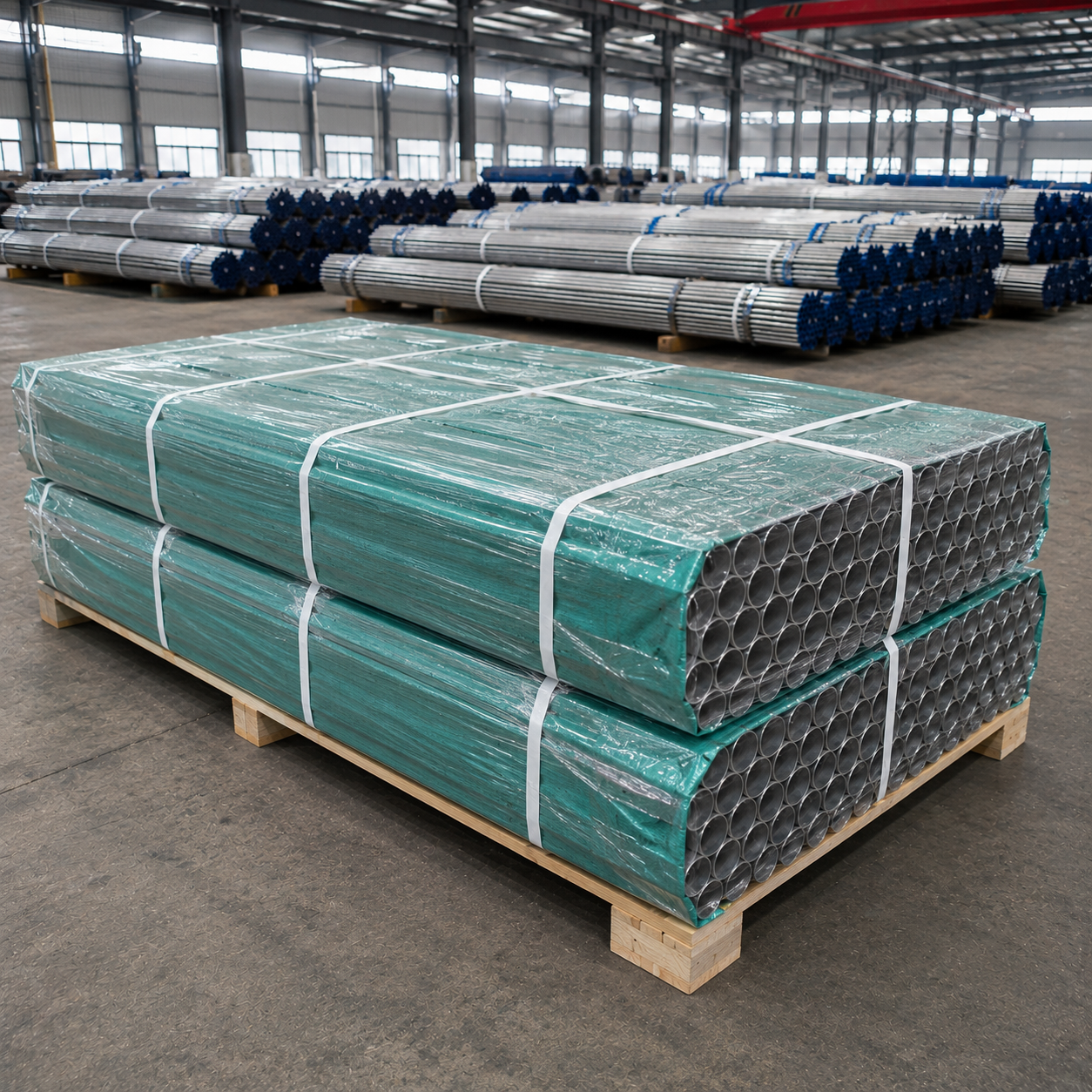

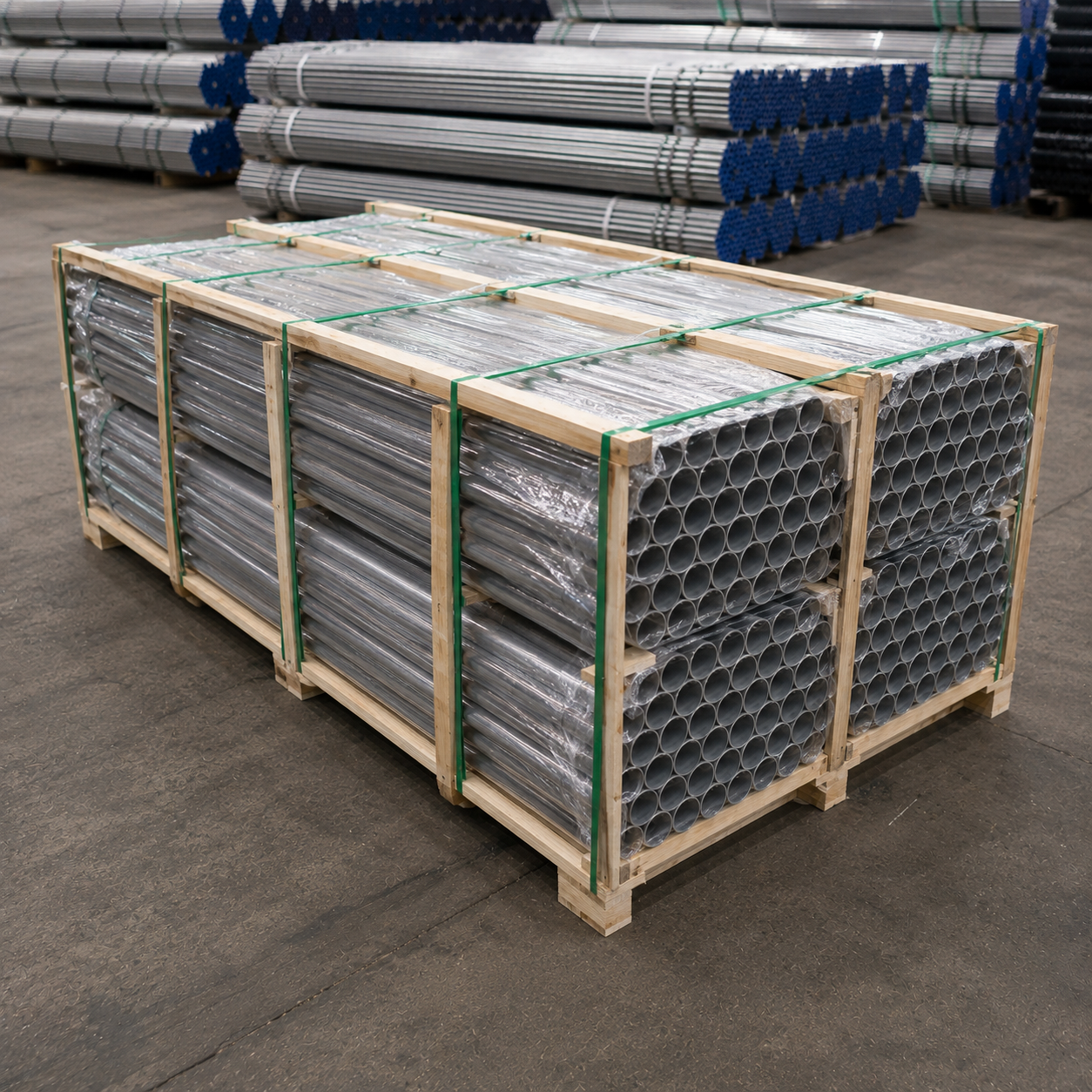

Packaging & Export Protection

  • Each length wrapped first. Plastic film goes on before anything else so the surface does not pick up scratches, dust or handling marks between the line and the container. Polished and BA finishes get the most attention because they show every contact.
  • Bundles strapped, not loose. Lengths are grouped and bound with steel straps, with padding or corner guards between the pipes so they cannot rub against each other in transit.
  • Outer packing matched to the order. Woven bag for a workaday 2B order, a wooden case where the finish or the size needs more protection, and export seaworthy packing for mixed or long-haul loads.
  • Ends matter. End caps can be fitted on request to keep the bore clean and the ends round; on thin-wall tube this is what stops an oval end from making the first field weld difficult.
  • Mixed loads. Tell us when stainless steel pipe fittings travel in the same crate, so they are packed where they cannot strike the pipe ends.
  • Loaded to stay straight. Long bundles are supported along their length rather than hung between two points, because a long run of thin-wall tube will take a set if it is left unsupported in a container.

Ordering & Delivery

  1. Send the line data. Grade, outside diameter × wall thickness, length, finish and quantity in pieces or metres, plus the standard or project specification if one applies.
  2. Describe the duty. Medium, pressure, temperature and whether the tube will be welded on site. It is the quickest way for us to flag a grade or wall that will not suit before it is quoted.
  3. Confirm the finish and the ends. Plain cut, end caps, or a finish that has to match existing panels; the more precise this is, the fewer surprises on arrival.
  4. Agree the documents. If your customs file or project file needs a material certificate, a packing list with bundle weights, or inspection before loading, name it now so it is included in the quotation.
  5. Say how it should arrive. Tell us the packing you want and how each bundle should be marked, and how the yard will lift it; a yard lifting by crane and one moving bundles by forklift need different bundle weights.
  6. Confirm the commercial terms with your sales contact. Order quantity, price, lead time, payment terms and shipping arrangements are agreed per order and depend on grade, size and destination.
  7. Ask about anything still open. If the grade, length or finish you need is not covered here, contact our sales team with the size and the duty. As a stainless steel pipe supplier we would rather tell you what will not work before you order than have a bundle arrive that does not fit the line.

Supply Chain & Delivery Assurance

Ruihuang Pipe Technology Co., Ltd. has been manufacturing since 2009 and has been listed on the Shanghai Stock Exchange since December 2019 (stock code 100868). Five brands, more than 30 branches and sales networks across China, and over a hundred projects delivered together with Chinese enterprises give us the reach to gather the categories we supply into one order and one container, pack for export, plan production around your peak season, and ship from Shanghai to Southeast Asia, the Middle East, South Asia and West Asia on terms you prefer.

FAQ

Is 304 or 304L the better choice for a welded line?

Take 304L when the pipe will be welded in the field and cannot be annealed afterwards. The lower carbon keeps the weld and heat-affected zone from sensitising, which is where a 304 line is most likely to show early corrosion. If the tube arrives already welded, annealed and finished from us, standard 304 is usually enough for a stainless steel pipe in water, utility and general process duty. Tell us which situation applies and we will quote the grade that matches it.

What does a BA finish give me that 2B does not?

Brightness and easier cleaning, not extra strength. BA is annealed in a controlled atmosphere rather than pickled, so the surface comes out bright and reflective and reads as a cleaner, more hygienic tube in food, pharmaceutical and visible architectural work. 2B is matte and uniform and costs less, which is why most industrial and structural orders use it. Both are applied to the same welded steel pipe, so the difference is surface only.

When should I move from welded to extruded tube?

When pressure, temperature, thermal cycling or the project's own wording demands it. A312, A249 and A269 can be met in either construction, so read the line item: if it specifies a tube with no weld seam, it means a tube with no weld seam. For water, washdown, food-area and structural duty at moderate conditions, a welded tube with an annealed seam does the job. For high-pressure, high-temperature, heat-exchanger or fatigue duty, quote the stainless steel pipe range with no weld seam instead.

Can this pipe be used for drinking water?

304 is widely used in water treatment and supply work, and a stainless steel water pipe will not rust through the way a coated or galvanised line does. Whether a particular authority accepts it depends on local approval and the documentation they ask for, which varies by market. Tell us where the project is and what the specification calls for, and we will confirm what can be supplied and what paperwork can travel with the order.

Do you supply fittings to match the pipe?

Yes. Elbows, tees, reducers, caps and clamps in stainless steel are part of the same range, and ordering pipe and stainless steel pipe fittings together keeps the grade and the wall consistent across the line. Send the fitting list alongside the pipe sizes so the two are matched before the crate is packed.

Does the weld show on the inside of the pipe?

The internal bead is worked back during weld bead treatment, so the bore does not carry a raised ridge that traps product or disturbs flow. On polished and hygienic work this is also what lets the inside of the tube be finished closer to the outside standard. If a completely flush bore is critical to your process, mention it with the enquiry so the requirement is written into the order.
