Product Overview
A reducer does one job in a pipeline: it takes a line from one bore to another. The larger pipe joins the wide end, the smaller pipe joins the narrow end, and the tapered body carries the flow across the change so velocity shifts gradually instead of in a single step. That gradual transition is why a reducer is preferred over a fabricated swage or a bushing — the flow stays closer to the wall, turbulence stays lower, and the pressure behaviour of the run stays predictable.
In a finished system the fitting usually sits where a line changes size for a reason: at the suction or discharge of a pump, where a header feeds a smaller distribution branch, or where a transmission main steps down into the pipework inside a building. It works alongside elbows and tees rather than replacing them, and it is normally the last item settled on a diameter change — which is why stockists keep a working range on the shelf next to their standard fittings.
For a distributor the practical questions are simple: which two bores have to meet, and in what orientation. Everything else — grade, end preparation and finish — follows from the line itself. As a stainless steel reducer supplier we deal mostly with wholesalers, stockists and project buyers who want the fitting to arrive already matched to the pipe it will join, so the fabrication crew can set it in place without reworking a bevel or chasing a thread.
We supply both concentric and eccentric bodies and, as an eccentric reducer manufacturer, handle reducers as part of a mixed fitting list rather than as a single line item, which is how most of our buyers actually order them.
Concentric & Eccentric Configurations
- Concentric body — a symmetrical cone with the bore centred on the pipe axis. It keeps the centreline steady through the size change, which is what most general transitions need, and it suits vertical runs and connections into pumps, vessels and manifolds. A stainless steel concentric reducer is the version most stockists keep on the shelf — the one a butt weld reducer supplier is asked for more than any other.

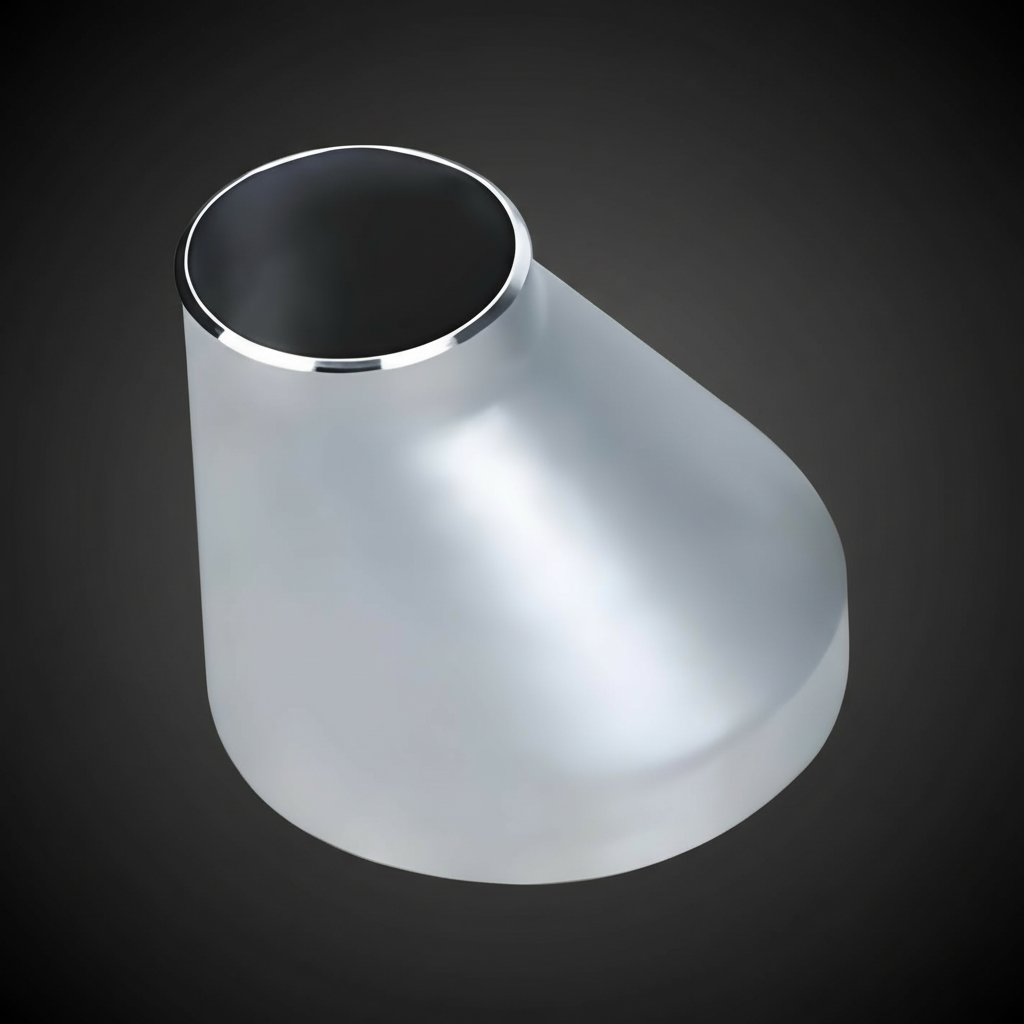

- Eccentric body — one side runs straight while the bore offsets to the other, so the fitting has a flat face and a sloping face. It is used on horizontal runs where a centred cone would create a pocket that traps air or collects condensate.
- Setting the flat side — on liquid service the flat face usually goes down so gas can travel along the sloping top and out of the line; on gas or steam service it usually goes up so condensate drains away instead of pooling. Confirm the arrangement your line design calls for before the joint is made.
- Where an eccentric pipe reducer earns its place — pump suction lines, gravity drainage and stormwater runs, steam and gas headers, and any horizontal line that cannot afford a trapped pocket at low flow.
- Where concentric is the default — vertical drops, pipe racks, general water distribution and most distributor stock, because there is no pocket to manage and the centred bore keeps the layout simple.
- Choosing between them — two questions settle it: is the run horizontal, and can the medium trap gas or drop liquid? If both answers are yes, the offset body is the safer choice. As an eccentric reducer manufacturer we ask those two questions before anything else, because they decide the shape of the part.
Material Grades
Four grades cover most of what our buyers order, and as a stainless steel reducer supplier we choose between them on the medium and the environment rather than on the size. 201 is the economical option. It uses manganese in place of part of the nickel, which brings the cost down, and it performs well in mild indoor service — light water lines, enclosures, non-aggressive utility work. It is not the grade for a coastal site or for a line carrying chlorides. 304 is the general-purpose austenitic grade and the one most specifications call for. It handles potable water, food and beverage contact, moderate chemical exposure and general process work, and it is easy to weld and form, which is why a 304 stainless steel reducer is the version we quote most often. 316 adds molybdenum, and that is what makes the difference in chloride-bearing service: coastal installations, marine atmosphere, de-icing salts, brackish water and chemical streams where 304 would pit. The cost step is modest against the service life it buys. Duplex is a two-phase grade with noticeably higher strength and better resistance to chloride stress corrosion than the austenitic grades. A duplex steel reducer is chosen where the line runs at higher duty, where wall thickness needs to come down, or where the medium is aggressive enough that 316 is marginal. It welds well but demands closer control of heat input and matching consumables. Match the fitting to the pipe it joins. A 304 pipe with a 201 fitting, or a duplex line with an austenitic reducer, creates a joint that will behave differently on each side of the weld. Tell us the pipe grade when you send the requirement and we will match it.
Connection Types
- Butt weld — the ends are prepared for a full-penetration weld and the joint becomes part of the line. This is the default for stainless process and transmission pipework, and it is the right choice wherever the joint will be buried, insulated or simply not opened again. - Socket weld — the pipe slips into a socket and is fillet welded on the outside. Alignment is quicker and the weld is easier to inspect on small-bore work; a socket weld reducer is a common choice on utility and instrument lines in the smaller sizes. - Threaded — screwed ends for small-bore lines where the joint may need to come apart for maintenance. Sealant or tape is needed at assembly, and the thread limits how thin the wall can be, so it is not the option for hygienic or thin-wall service. - Flanged — bolted to a matching flange, which makes the fitting removable and lets it bolt directly to a valve, pump, vessel nozzle or equipment connection. A gasket and bolt set are needed at assembly. - Matching the end to the pipe — the end preparation has to suit the pipe end or the counterpart flange on site, and that is the detail a stainless steel reducer supplier checks against the pipe schedule before the order is fixed. - Choosing between them — permanent, high-integrity lines go butt weld; small utility lines that get opened go threaded or socket weld; anything that has to be unbolted goes flanged. A duplex steel reducer is almost always ordered with butt weld ends, because duplex is specified for the duty rather than for convenience. - Supply view — as a butt weld reducer supplier we prepare ends to the joint you specify and pack them so the bevel arrives undamaged, which matters more than most buyers expect until the first consignment lands with a dented end.
Surface Finish Options
Finish is decided by two things: whether the part will be welded on site, and what the line has to look like when it is inspected.
Pickling is the standard treatment for a butt weld fitting. An acid pickle removes the heat tint and oxide left by welding and restores the chromium oxide layer that makes stainless steel stainless. Where the reducer will be welded into the line after delivery, pickled or unpickled supply is usually agreed with the buyer so the weld zone can be treated as part of the installation — a point a butt weld reducer supplier will settle before the batch is packed.
Sand blasting gives a uniform matte surface and strips scale and discolouration from the whole body. It is chosen where the appearance has to be consistent across a batch, and where a reflective finish would be a nuisance on an industrial site.
Mirror polishing produces the bright, reflective surface most buyers associate with hygienic work. It is specified for food, beverage and pharmaceutical lines where the surface has to be easy to clean and easy to inspect, and for visible architectural pipework where the fitting will be seen.
Matte finish keeps reflection down and hides the scuffs and handling marks that accumulate in a warehouse or on a construction site. It is the practical choice for industrial lines where appearance is not the priority.
The same fitting photographed in a mirror-polished and a matte finish shows how much the surface treatment changes the look of the part, while the shape, the grade and the end preparation stay exactly the same.
Finish is also the first thing an inspector notices, and it is where an eccentric reducer manufacturer's process control shows: an uneven blast or a patchy polish is visible from across the workshop. If the line carries a surface standard, send it with the requirement and we will match the finish to it.
Applications
- Municipal water supply — reducers step transmission mains down into distribution pipework at offtakes, meter chambers and pressure-reducing stations, where the bore change has to be made without disturbing the flow.
- Drainage and sewage — in pumping stations and gravity runs an eccentric pipe reducer is normally fitted on the horizontal so the flat face holds the invert line and no air pocket forms at the change.
- Chemical processing — process lines change bore between reactors, columns, heat exchangers and pumps, and the fitting has to suit the chemistry as well as the size.
- Food and beverage — hygienic lines change diameter around fillers, mixers, cleaning circuits and tank outlets, and the fitting is expected to be cleanable and inspectable.
- Pharmaceutical — the same logic applies where a validated surface finish and a crevice-free joint matter more than the cost of the part.
- Oil and gas — gathering, transfer and utility lines use reducers at metering skids, manifold headers and pump connections, often in the higher grades where the duty demands it.
- Marine and offshore — deck drainage, ballast and cooling lines; a duplex steel reducer is frequently specified for splash-zone and deck work where the environment is hard on the fitting.
- Construction projects — building services, fire main connections, plant rooms and riser transitions, where the fitting has to match a material list and arrive on a scheduled delivery.
Specifications
| Property | Value |
|---|
| Product type | Stainless steel concentric reducer and eccentric reducer |
| Material grades | 201, 304, 316 and duplex stainless steel |
| End connections | Butt weld, socket weld, threaded, flanged |
| Surface finish | Pickling, sand blasting, mirror polished, matte |
| Body form | Tapered conical body, open at both ends; bore offset on the eccentric type |
| Flow function | Connects pipes of different diameters and reduces turbulence and pressure loss |
Welding & Installation
- Check the bore at each end and the grade against the pipe before anything is cut.
- Clean the pipe ends and the fitting. Oil, marker, cutting fluid and surface oxide all end up in the weld pool and show later as porosity or as a corrosion site.
- Align the reducer on the pipe axis and tack it in place. Keep the bore true through the joint; a fitting tacked slightly off-centre loads the weld unevenly and the error shows at the far end of the run.
- Select filler matched to the grade. Austenitic 304 and 316 work takes matching austenitic consumables; a duplex steel reducer needs a matching duplex filler and a tighter heat-input window, so follow the weld procedure rather than the habit from the last job.
- Weld with controlled heat input and let the joint cool between passes. Overheating is what causes distortion and, on the duplex grades, the loss of the properties the grade was bought for.
- Clean the weld and the heat-affected zone. Pickling or mechanical cleaning followed by passivation restores the oxide layer, and this is the step that keeps a 304 stainless steel reducer from showing rust at the weld a few months later.
- Pressure test or leak test the joint before the line goes back into service. On a socket weld reducer, leave the expansion gap your procedure calls for rather than driving the pipe hard into the socket.
Ordering & Delivery
- What to send — the nominal bore at the large end and at the small end, the pipe schedule or wall thickness on both sides, the grade, the connection needed at each end, the finish and the quantity. With those details we can come back with a matched offer instead of a list of questions. - Grade and documentation — tell us the pipe grade the reducer has to match, and ask which mill or test documents can travel with the consignment if your customer or inspector requires them. - Confirming terms — order quantity, lead time, payment terms and the shipping schedule are confirmed with your sales contact at the time of enquiry, because they move with mill allocation and vessel space rather than with the fitting itself. - Samples — if you need to see the finish or the end preparation before committing to a stock order, ask your sales contact about sample availability and the current arrangement. - Packing and marking — state whether the order should be palletised, cased, or labelled to your own warehouse system. Mixed consignments combining reducers with elbows, tees and other fittings are handled as one order rather than as separate shipments. - Inspection — if your QA team inspects before shipment, say so early so the timing can be built into the production schedule rather than added at the end. - Getting started — send the bore pair, the grade and the end type through the enquiry form or straight to your contact, and the team will take it from there. Packing for a stainless fitting protects two surfaces: the bore and the end preparation. Each reducer goes into a plastic bag before it is boxed. The bag keeps the polished or pickled face away from the packing material, stops handling marks during loading, and keeps dust and moisture off the surface on a long sea leg. Larger and consolidated consignments travel in wooden cases, which take the weight of a stacked container and keep the fittings from moving against each other. Palletised orders go on plywood pallets, banded and stable enough for a forklift to move in one lift. Both are standard export seaworthy packing, built around one idea: nothing inside the case should be able to touch a bevel or a bore. Mixed orders are the normal case for a distributor. Different bores, different grades and different end types can travel together; what matters is that each size is bagged, labelled and packed so the warehouse can receive it without sorting the whole case on the floor. If the fittings are going straight to a site rather than into stock, say so when you order. A supplier who knows the case is heading for a fabrication yard will pack for site handling rather than for shelf storage, and the difference shows the moment the case is opened.
Supply Chain & Delivery Assurance
Ruihuang Pipe Technology Co., Ltd. has been manufacturing since 2009 and has been listed on the Shanghai Stock Exchange since December 2019 (stock code 100868). Five brands, more than 30 branches and sales networks across China, and over a hundred projects delivered together with Chinese enterprises give us the reach to gather the categories we supply into one order and one container, pack for export, plan production around your peak season, and ship from Shanghai to Southeast Asia, the Middle East, South Asia and West Asia on terms you prefer.
FAQ
How is a reducer specified when the two pipe bores are different?
You give the bore at each end — the large end and the small end — matched to the two pipes being joined, together with the wall thickness or schedule those pipes use. A stainless steel concentric reducer is then matched to that pair, and the same information fixes the end preparation on each side. Where the two pipes differ in grade as well as size, tell us both so the fitting can be matched to the line as a whole.
Can the two ends of one reducer carry different connection types?
Each reducer is supplied with one of four end options — butt weld, socket weld, threaded or flanged — and the two sides do not always call for the same joint. Where a socket weld reducer is wanted on a small-bore branch while the main run is butt welded, say so when you send the requirement and we will confirm what is possible for that size and grade. It is better settled before production than discovered at the fitting-out stage.
Is an eccentric pipe reducer suitable for vertical pipe runs?
It can be fitted vertically, but its advantage disappears there. The offset body exists to manage air or condensate in a horizontal run, and in a vertical line there is no high point to trap gas and no low point to collect liquid. Most vertical size changes use a concentric fitting, which keeps the bore centred and the pipe axis straight through the change.
What should be done to the weld area after the reducer is installed?
Clean it properly. Welding burns away the passive layer and leaves heat tint, and that is where corrosion starts first — on a 304 stainless steel reducer as much as on any other grade. Pickling, or mechanical cleaning followed by passivation, restores the oxide film across the weld and the heat-affected zone. On lines where appearance matters, take the same care with the polished face so the repair does not become the only dull patch in the run.
Which end of the reducer should face upstream in a reducing run?
Flow normally enters at the large end and leaves at the small end. Accelerating into the smaller bore keeps the flow attached and produces less turbulence than the reverse arrangement. A concentric body can be fitted either way round when the layout demands it, but expect more disturbance where the flow decelerates into the larger bore. With an eccentric body the flat side matters more than the direction, so set that first.
