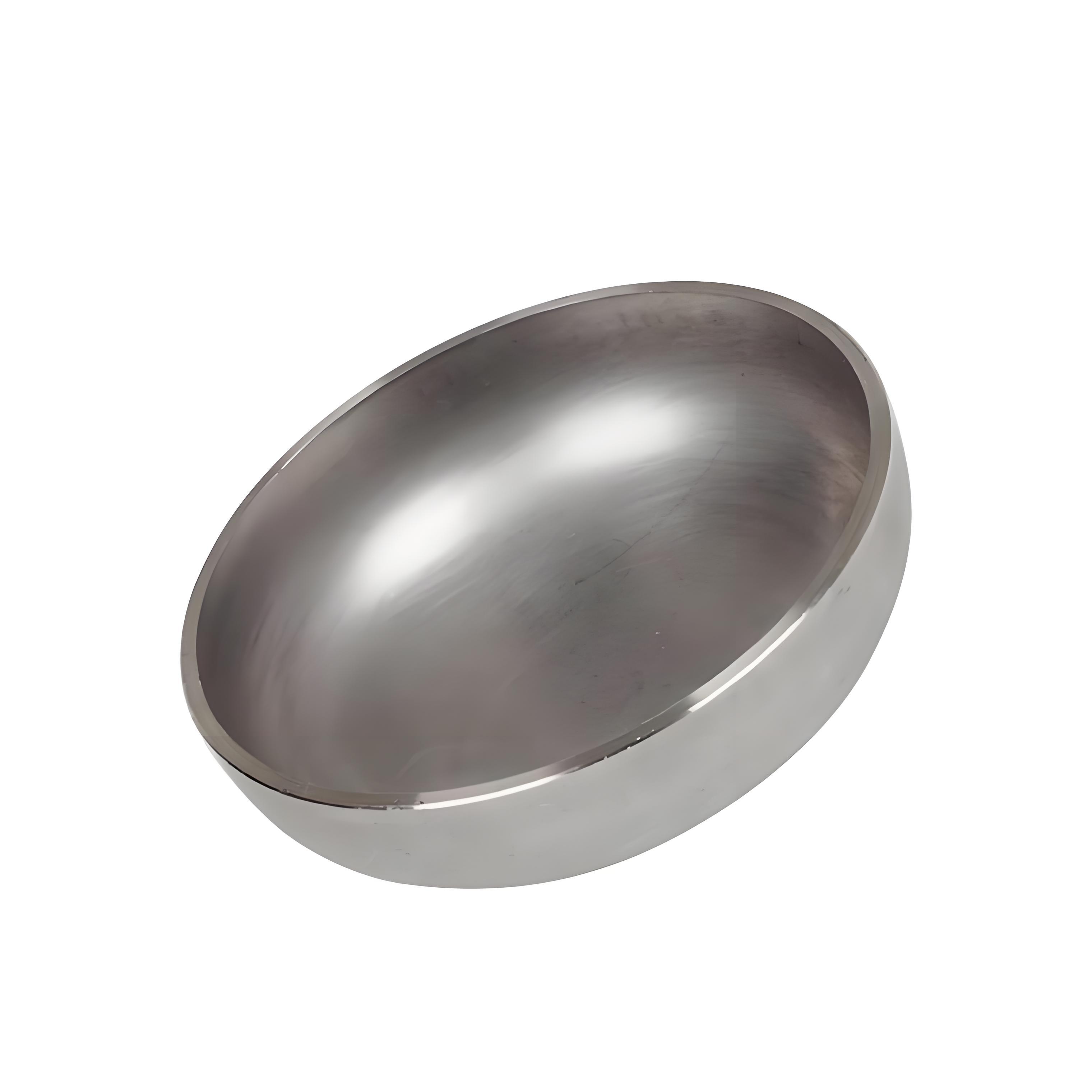

Pipe Cap

No.SS260522
Wholesale pipe caps in stainless steel, carbon steel and ductile iron, DN15 to DN600, with butt-weld, threaded or socket-weld ends.
Download
View all downloads
  • Pipe Cap,MY SHOP,Pipe Cap

Description

Cap, Plug or Blind Flange

  • A cap fits over the outside of the pipe. The cap slides onto a plain-end, bevelled or male-threaded pipe and is butt-welded, socket-welded or threaded onto it. If the pipe end presents bare metal on the outside, a pipe cap is the correct part.
  • A plug fits inside the pipe. Where the line terminates in a female thread, a coupling, a socket or a threaded fitting, there is nothing on the outside to grip, and a threaded plug screws into the bore instead. Send a cap for a female end and the part will not seat, however carefully it is measured.
  • A blind flange bolts to a flange. If the pipe already ends in a flange — at a valve, a pump casing, a vessel nozzle or a flanged header — the closure is a blind flange, matched to the flange standard, pressure class, facing (RF, FF or RTJ) and bolt circle. A steel pipe end cap cannot bolt to a flange, and welding one across a flanged face ruins the facing and the joint.
  • Settle the end type before the size list is finalised. Note whether the end is plain, bevelled, male-threaded or female, and whether bolt holes are present. That single check decides whether the order is for a cap, a plug or a blind flange, and it costs nothing at the quotation stage.
  • Count the transition points on the drawing. A line that changes from welded steel to a flanged valve mid-run needs both: caps on the welded branches, blind flanges on the flanged openings. Wholesale pipe cap orders usually mix the two, so list them as separate lines with their own quantities rather than one pooled total.
  • Carry the line's rating onto the closure. Test pressures and working pressures apply to the cap, plug or blind flange just as they do to the pipe, so state the rating per item and per size instead of leaving a default. A closure rated below the line is the weak point in an otherwise sound test.
  • If the drawing is unclear, send the end itself. The outside diameter, the thread type, or the flange dimensions and a photograph of the end are enough for us to confirm which of the three parts the line needs, and to make it in the matching material and finish before it leaves the works.

Product Overview

A pipe cap closes the end of a pipe, and it usually does that job twice in the life of one order. The first job is in transit: grit, rain water, weld spatter and dropped tools find their way into an open bore between the mill and the site, and every length has to be cleaned and re-inspected before it can be sold or installed. Wholesale pipe cap volumes normally travel on the pipe itself, fitted at bundling and taken off at the cutting bench. The second job is permanent. Blanking a branch reserved for a later phase, terminating a header, closing a spare tank nozzle or isolating a section for a pressure test all finish with a cap welded, threaded or socket-welded onto the pipe end. Where nothing has to pass and nothing has to be regulated, a cap does the work a valve would otherwise do, at a fraction of the cost. Sizing is direct. A steel pipe end cap is ordered to the same nominal bore as the pipe it closes and supplied in the same material family, so the joint ages the way the line does. A pipe cap fitting is one of the smallest lines on a bill of materials, and one of the few that decides whether the rest of the shipment is usable on arrival.

Quality & Inspection

Inspection pointWhat is checked
Incoming materialMaterial and wall checked against the order line
Bore dimensionsBore diameter, overall height and crown thickness measured
RoundnessOpen end checked for ovality so the cap seats on the pipe
Weld endBevel angle and land checked on butt-weld caps
ThreadsThread form and run-out checked with gauges, then protected for packing
CoatingCoverage checked on the body, in the thread roots and on the cut edge
Bore finishFree of scale, spatter and swarf
Carton markingSize, material and quantity marked before the carton is closed

Sizing & Pipe-End Fit

  • Order by nominal bore. The cap follows the DN of the pipe: DN15 to DN600 is the standard range, and each cap is ordered against the DN of the pipe it closes.
  • Give the wall thickness as well. A cap has to sit on the actual outside diameter and wall of the pipe. A heavier fitting on light-wall tube distorts the end and makes the joint hard to seal.
  • Small sizes, DN15 to DN50. Instrument lines, small water and HVAC branches, and threaded connections at pumps and manifolds. Threaded caps are usual here because these lines are assembled on site.
  • Mid range, DN50 to DN200. Distribution mains, plant piping and drainage headers; socket-weld for small-bore high-pressure joints, butt-weld above that.
  • Large sizes, DN250 to DN600. Trunk mains, headers, tank nozzles and storage lines, where butt-weld is the normal choice and the cap is matched to the pipe wall.
  • Measuring an existing pipe. Take the outside diameter with a caliper, record the wall and the end preparation, and check which end type the existing fittings use before ordering a steel pipe end cap for it.
  • Thin-wall and stainless tube. A stainless steel pipe cap for thin-wall tube needs a matching wall; a heavy standard carbon steel pipe cap is right for schedule pipe but too stiff for light hygienic tube.
  • Outside the range. Non-standard bores and heights are made to drawing — send the dimensions and the material rather than a photograph.

Installation & Sealing

  1. Isolate and drain the line before a cap goes on. A cap fitted to a live line seals nothing and puts the fitter at risk.
  2. Clean the pipe end back to bright metal. Burrs, scale, rust, cutting oil and moisture sit between cap and pipe and are the usual cause of a weeping joint.
  3. Dry-fit by hand first. A pipe cap fitting that has to be driven on is the wrong size or has a damaged bore, and forcing it distorts the pipe end.
  4. Choose the joint for the duty: butt-weld for a permanent high-integrity closure, socket-weld for small-bore and instrument lines, threaded with a suitable thread sealant where the cap may need to come off again.
  5. Weld to the line's own procedure. On galvanized caps, grind the zinc back from the weld zone first and restore the coating afterwards — welding through zinc gives a porous weld and unhealthy fumes.
  6. Thread with care. Hand-tight plus a part turn is enough on most sizes; over-tightening splits the cap or damages the thread, and the damage stays invisible until the line is pressurised.
  7. Test with the cap in place and inspect the joint. On a temporary closure, mark the cap so nobody commissions a line with it still on.
  8. If the end type is not settled yet, ask your pipe cap supplier what the rest of the line uses — matching a cap to existing threads, flanges or weld preparation is cheaper than adapting on site.

Applications

Oil and gas work is where the carbon steel pipe cap earns its keep: closing test headers, capping future tie-in points, sealing spare branches on gathering and transmission lines, and protecting bevelled ends while pipe sits in the stockyard between campaigns.

In water and sewage, a ductile iron pipe cap is specified with the ductile iron main it closes, so cap and pipe take the same handling and backfill load and the same protection from the ground they sit in. It is also the usual way to close a main overnight during a staged connection.

Chemical and pharmaceutical piping uses stainless caps on reagent lines, sampling points and drain branches, where a clean, non-rusting end matters. HVAC and industrial protection work uses caps on chilled water, condenser water and condensate branches to keep debris out of coils and pumps while the plant is still being built.

Two more jobs are worth planning for. Caps fitted at bundling keep the bore clean across a sea container and come off only at the cutting bench. Temporary caps let a section be filled and pressurised for testing and are removed before commissioning — mark them clearly, because a cap left on a live line is a blockage waiting to happen.

Specifications

PropertyValue
ProductPipe cap
Item referenceSS260522
MaterialCarbon steel (CS), stainless steel (SS), alloy steel (AS), ductile iron (DI), PVC / HDPE
Standard sizesDN15 - DN600
Custom sizesMade to drawing or sample
Pressure ratingPN10 - PN40, depending on material
End typesButt-weld, threaded, socket-weld
Surface treatmentGalvanized, polished, painted, powder coated
ServiceTemporary end protection or permanent line closure
Typical applicationsOil and gas, water supply and sewage, chemical and pharmaceutical, HVAC
Bulk packingIndividual protective wrapping; cartons or wooden crates

Material & Finish Options

  • Carbon steel (CS). The working default for oil and gas lines, water supply, sewage and HVAC. It takes galvanized, painted or powder-coated finishes, and that coating is what decides how long the cap lasts outdoors.
  • Stainless steel (SS). A stainless steel pipe cap is the choice for chemical and pharmaceutical piping, potable water, and coastal or high-humidity sites where a bare steel end would bloom with rust before handover. The polished option gives a smooth surface that wipes clean.
  • Ductile iron (DI). Heavier in the wall and more tolerant of impact than a light steel cap, which is why it travels with ductile iron mains in buried water and sewage work.
  • Alloy steel (AS). Taken from the line specification rather than picked from a shelf — the cap follows the alloy pipe it closes.
  • PVC and HDPE. For plastic pipe systems, where a metal cap would be the wrong material at the joint.
  • Surface treatment. Galvanized for outdoor and buried service, polished where hygiene and appearance matter, painted or powder coated for a uniform colour on visible pipework. A pipe cap manufacturer who also supplies the pipe can hold the cap's coating consistent with the pipe coating in the same order.

Ordering & Packing

  1. Send the size list — DN, material, end type, surface treatment and quantity for every line, not just the total.
  2. Confirm the pressure rating per size. PN10 to PN40 is the range and the rating follows the material, so state the one you need rather than letting the default stand.
  3. Say where the caps are going. A buried water or sewage main calls for a ductile iron pipe cap specified with the pipe it closes; plant piping stays on carbon or stainless; chemical service moves to stainless.
  4. Choose the packing. Caps are individually wrapped, then bulk packed in cartons or wooden crates; custom packing is available where the cartons need to go straight onto a distributor's shelf.
  5. Add the marking. Project number, size and material on cartons and crates are applied at packing when you ask for them.
  6. Load it with the rest. Caps, flanges, U-bolts and pipe from one source can travel in the same container, which means one set of documents and one arrival date.
  7. Raise documentation early. Certificates, third-party inspection or a packing list in a particular format need to be agreed before the container is closed, not after.
  8. Put the terms in writing. Ask your pipe cap supplier to confirm price, payment terms, production lead time and shipping terms against the final list before production starts.
  9. For repeat orders, quote the item reference and the original size list, and the same pipe cap manufacturer works from the same basis — which is what keeps bore and coating consistent between shipments.

Supply Chain & Delivery Assurance

Ruihuang Pipe Technology Co., Ltd. has been manufacturing since 2009 and has been listed on the Shanghai Stock Exchange since December 2019 (stock code 100868). Five brands, more than 30 branches and sales networks across China, and over a hundred projects delivered together with Chinese enterprises give us the reach to gather the categories we supply into one order and one container, pack for export, plan production around your peak season, and ship from Shanghai to Southeast Asia, the Middle East, South Asia and West Asia on terms you prefer.

FAQ

Can you make caps to match a pipe specification?

Yes. Give us the nominal bore, the pipe wall thickness or schedule, the material and the end type, and the cap is made to suit. We work in carbon steel, stainless steel, alloy steel, ductile iron and PVC/HDPE, with butt-weld, threaded and socket-weld ends. Where a project names a pipe standard, the cap is matched on the same basis rather than to a generic size — a pipe cap manufacturer that also supplies the pipe can confirm both from the same order sheet.

Do you supply ductile iron pipe caps for buried water mains?

Yes, and they are normally ordered alongside the main they close. Tell us the DN and the joint type the main uses, and confirm the internal and external protection your project calls for, so the cap reaches site ready to go into the trench with the pipe rather than needing treatment afterwards.

What is the difference between a pipe cap and a blind flange?

A cap closes a bare pipe end: it fits over the outside of the pipe and is welded, socket-welded or threaded on. A blind flange bolts to an existing flange to blank a flanged joint. If your line already terminates in a flange you need the blind flange, not the cap — and if the end connection is not built yet, ask your pipe cap supplier which one your drawing calls for before either is ordered.

Can a stainless steel pipe cap go on a carbon steel line?

It fits, but it changes where corrosion happens. Joining stainless to carbon steel creates a galvanic couple, and on a wet or buried line the carbon steel side becomes the anode and corrodes faster than it would alone. On dry indoor service the risk is small; on a wet, buried or coastal line, keep the cap in the same material family as the pipe. A stainless steel pipe cap performs most reliably on stainless pipe.

Which end type should I use to pressure-test a line?

For a temporary closure, a threaded steel pipe end cap is quickest — it goes on and comes off without cutting, provided the pipe end is already threaded. On plain-end or bevelled pipe, a weld cap is used and then cut off, which costs a cut and a re-prep. Socket-weld sits between the two: fast on small bore, but permanent. Whichever you pick, match the cap's pressure rating to the test pressure, not to the working pressure of the line.

Which finish should I choose for an outdoor line?

Galvanized is the usual choice for a carbon steel pipe cap outdoors, on a rack or in a buried line, because the zinc protects the body, the thread and the cut edge. Painted and powder-coated caps give a uniform colour on visible pipework but rely on the film staying intact; once it is chipped on site, rust starts at the chip. For a coastal or chemical atmosphere, move up to stainless rather than relying on a coating.

Are caps available for plastic pipe as well as steel?

Yes. The pipe cap fitting is also supplied in PVC and HDPE for plastic pipe systems, where a metal cap would be the wrong material at the joint. Plastic caps are joined to the pipe by the same method the rest of that plastic line uses, and they do the same transit-protection job the steel caps do.
