Flanges

No.SS26052215
Weld neck, slip on, blind and lap joint flanges to ANSI/ASME, DIN, JIS, EN1092-1 and BS, Class 150-2500, export packed from Shanghai.
Download
View all downloads
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges
  • Flanges,MY SHOP,Flanges

Description

Product Overview

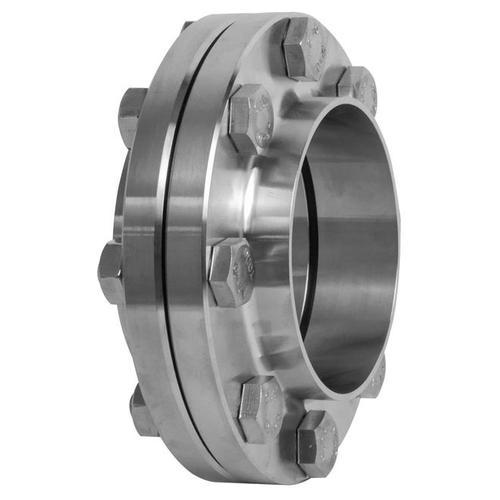

A flanged joint is really a pair of matched parts: two faces that meet flat, one gasket between them and a bolt circle that lines up hole for hole. Get those three things right and the joint holds. Get one wrong and the line weeps at the first pressure test. As a flange supplier we offer pipe flanges from 3/8 in. to 80 in. (DN10 to DN2000) in six connection styles and five standard families, so one order can carry a water main, a chemical header and a ship's cooling line at the same time. The bodies are a forged steel flange: the bore is machined to the nominal size, the face turned flat for gasket seating, and the rim drilled to the bolt pattern of the standard on your drawing. Before packing, every machined face and bore is given a rust-preventive film and fitted with a protective cover, which is why our crates open onto bright faces instead of rust-flecked ones. Most buyers who come to us are ordering wholesale pipe flanges rather than a single piece — a distributor restocking ten sizes before the construction season, a contractor filling a bill of materials, a fabricator who needs one class in a hurry.

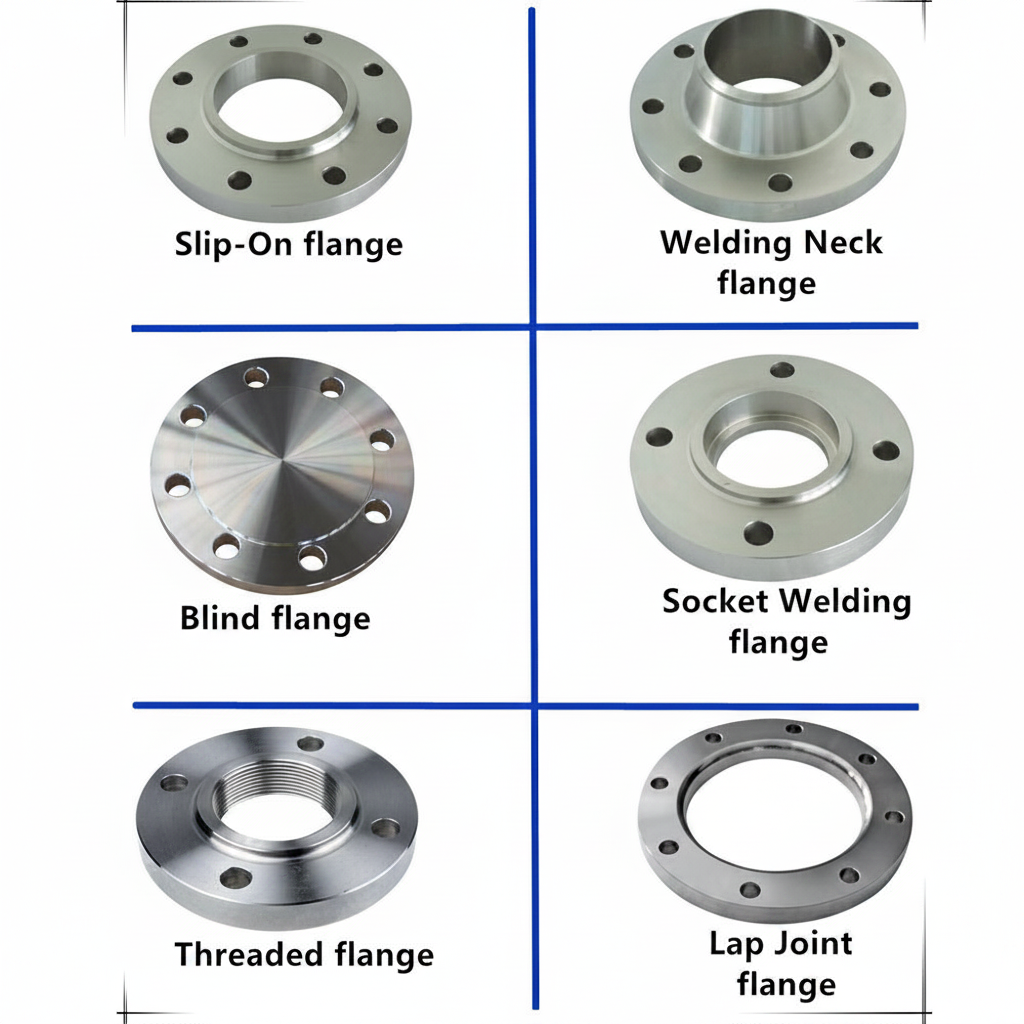

Flange Types & Service Fit

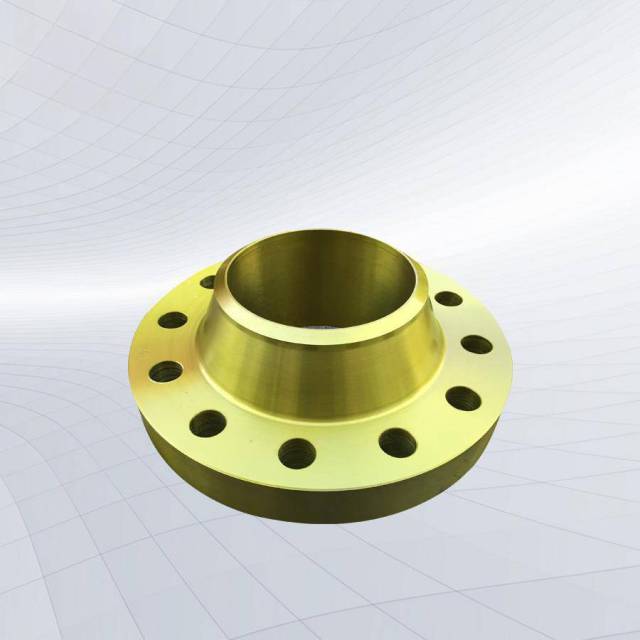

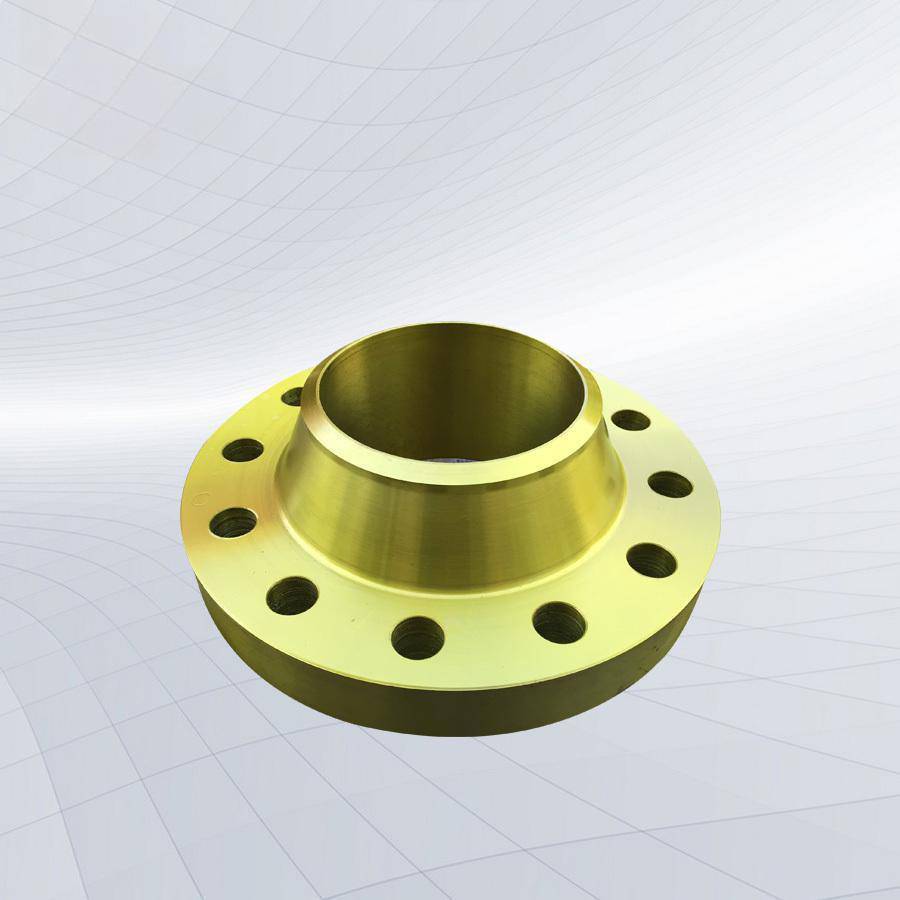

  • Weld neck flange — the tapered hub butt-welds to the pipe and the bore follows the pipe inside diameter, so there is no ledge for the flow to trip over. It is the choice for high pressure, high temperature and cyclic service, and for any line that will be radiographed.

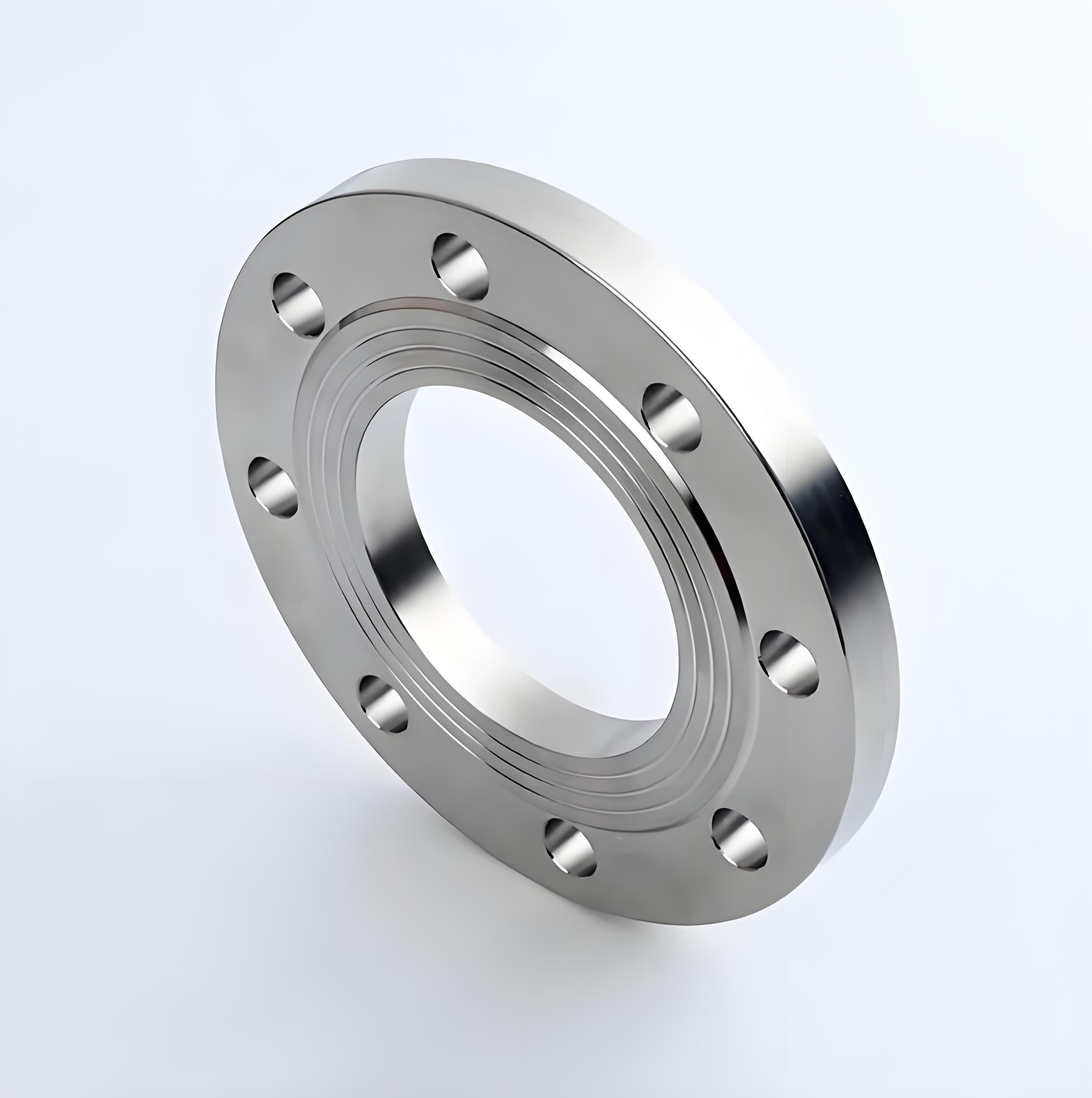

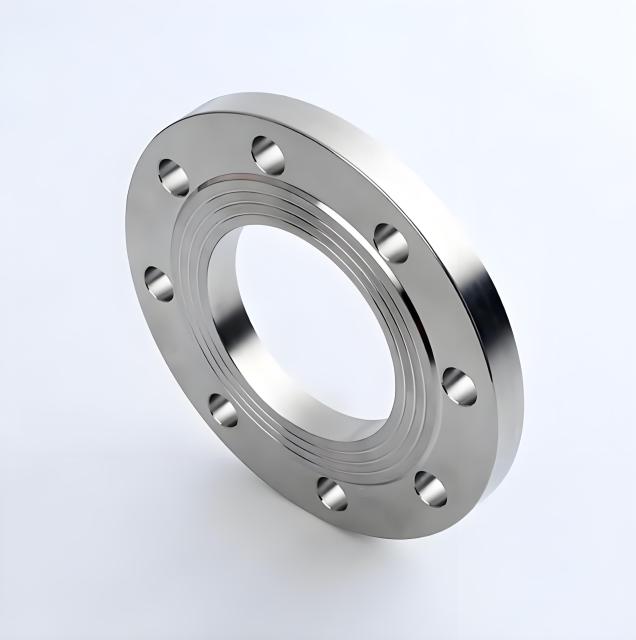

  • Slip on flange — slides over the pipe end and takes two fillet welds, one each side. Cheaper to buy and far easier to line up on site, which is why it dominates low and medium pressure water, utility and HVAC work.
  • Blind flange — a solid disc with no bore. It closes a line end, a spare nozzle, a manhole or a valve outlet, and it is what you bolt on for a hydrostatic test or to isolate a branch that will be tied in later.

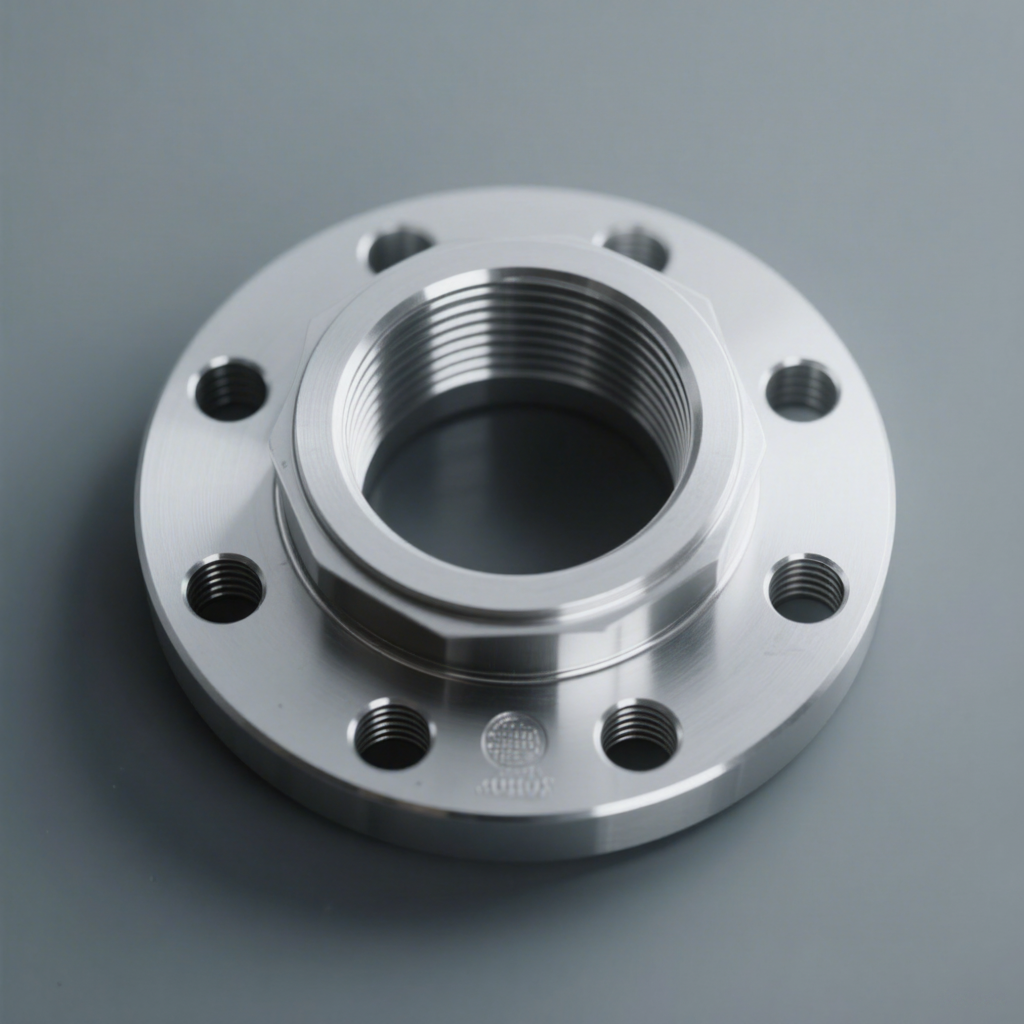

  • Threaded flange — screws onto a threaded pipe end with no hot work at all. Made for small bore, lower pressure lines, areas where a welding permit is difficult, and joints that have to come apart often.
  • Socket weld flange — the pipe sits in a counterbore and is fillet-welded from the outside. A compact small-bore joint that stays square without a backing ring, common on instrument and utility lines.
  • Lap joint flange — works with a stub end: the stub end is welded to the pipe, the flange slips on behind it and turns freely. Bolt holes can be rotated into line after the pipe is fixed, and the flange can be reused when the stub end is renewed.

Pressure Class, Facing & Standard Match

Pressure Class

A line's class comes from its design pressure and temperature together, not from the pipe diameter. Higher classes add hub thickness, a larger bolt circle and heavier bolts, which is why, in the ANSI B16.5 flange tables, a Class 300 weld neck flange will not swap with a Class 150 of the same nominal size. Both halves of a joint must be the same class — pairing a heavier flange with a lighter one leaves one side carrying the whole load. Facing Choice RF, the raised face, is the everyday gasket seat for most industrial joints. FF, the flat face, is used with cast iron equipment or where the mating part is full-face flat. RTJ, the ring type joint, seals metal to metal on a ring gasket for high pressure and high temperature duty, and the same range also covers MFM, TG and RJ profiles. A slip on flange on a low-pressure water line usually carries a raised or flat face, and the gasket has to match the profile on both sides — a flat gasket laid over a ring groove, or a ring gasket forced into a raised face, will leak however carefully the bolts are torqued. Standard And Bolt Pattern We work to ANSI/ASME, DIN, JIS, EN1092-1 and BS. Two flanges of the same nominal size but different standards can differ in outside diameter, bolt circle and bolt count, so the drawing reference carries more weight than the size alone.

Piping Applications

  • Oil and gas lines — gathering, transmission and metering skids, where the joint is fixed by the line number on the isometric. Higher classes and ring type joints are routine, and the flange has to arrive with the right bolt count the first time.
  • Chemical and petrochemical plants — alloy and stainless duty, with frequent opening for cleaning or catalyst changes. A blind flange on a spare nozzle lets a unit be expanded later without cutting into the header.
  • Water supply and treatment — the volume end of the range: large diameters, slip-on and blind patterns, galvanized or black-painted bodies for wet and outdoor locations.
  • Power plants — steam, condensate and cooling water circuits that run hot and cycle, so the joint has to hold its torque through expansion and contraction.
  • Shipbuilding and offshore modules — tight spaces where a lap joint flange earns its keep: the bolt holes can be rotated into line after the pipe is fixed, and the joint can be broken without cutting.
  • General industrial and HVAC — chilled water, compressed air and process utility lines, where standard patterns keep both cost and complexity down.
  • Replacement work — a shutdown where one forged steel flange has to match the marking on the part coming out, in the middle of a short maintenance window.

Specifications

Size range3/8" – 80" (DN10 – DN2000)
Pressure classClass 150 – 2500
Nominal pressurePN 2.5 – 400 bar (PN6 – PN64)
StandardsANSI/ASME, DIN, JIS, EN1092-1, BS
FacingsRF, FF, RTJ, MFM, TG, RJ
Surface treatmentAnti-rust oil, black painted, galvanized, polished
Export packingWooden cases or pallets, plastic film and protective covers
Customized packingAvailable on request

Surface Treatment & Finish

Four finishes are quoted on this range, and each one answers a different site condition.

Anti-rust oil is the working finish for machined flanges: a light film on the face, bore and thread that holds rust back through packing, sea freight and months in a warehouse. It wipes off with a rag before the gasket goes down and leaves the sealing surface untouched.

Black paint covers the body and rim for utility and structural pipework above ground. The face is masked during painting — a painted raised face, or a ring groove with paint in it, will not seal, and that is one of the most common causes of a weeping joint on a brand-new line.

Galvanized bodies suit buried, coastal and washdown locations. They are usually specified to match galvanized pipe on the same run, so the whole assembly ages at the same rate instead of one component failing first. Polished finish is chosen where the pipework is exposed and visible, or where a smooth, easy-clean surface matters around the joint.

Choosing between them comes down to environment and to what the flange is bolted against. A forged steel flange left bare in a humid yard will show surface rust within days, and a galvanized flange on a stainless line introduces a different metal at the joint. Send us the service condition and we quote the finish that matches the run rather than the cheapest line on the list. As a flange manufacturer we keep the sealing face separate from the body finish: the machined face is protected, never coated, and its cover stays on until the flange reaches site.

Bolt-Up & Installation

  1. Read both flanges before a bolt comes out of the box: nominal size, class or PN, facing profile and bolt count all have to agree on both sides.
  2. Check the gasket against the facing. A ring joint gasket in a raised face, or a flat gasket over a ring groove, will leak no matter how well the bolts are torqued.
  3. Weld first, bolt second. On a slip on flange, slide it onto the pipe, square it to the axis, leave the weld gap your procedure calls for, then weld both sides and let the joint cool before bolting up.
  4. On a weld neck flange, butt the hub to the pipe, set the root gap and complete the weld through the full wall, so the bore lines up with the pipe inside diameter without a ledge.
  5. Bring the two flanges together with the gasket centred and the bolt holes aligned. If the holes will not line up, the pipe is out of square — correct the pipe rather than pulling it in with bolts or drift pins.
  6. Oil the threads and nut faces, hand-tighten everything, then torque in a cross pattern over two or three passes instead of taking one side all the way down.
  7. Once the line has been up to temperature and pressure, re-check the torque. Bolts relax as the joint settles, and that second pass is what prevents the weep that shows up on the second day.

Ordering, Packing & Delivery

  • Send the five details that decide the part — standard, nominal size (DN or NPS), class or PN, facing, and the finish you want. Add the quantity per size and we can quote without a round of questions.
  • If the drawing is written to an ANSI B16.5 flange table, say so in the enquiry. "Class 150, 6 in., RF, weld neck, 20 pieces" comes back correct the first time.
  • Mixed sizes are the normal order. Distributors and contractors rarely buy one size; two or three pieces across ten sizes ship as one matched consignment, packed together.
  • Wholesale pipe flanges for stock or for a bill of materials — tell us whether the order is a restock or a one-off project, because it changes how the sizes are grouped and packed.

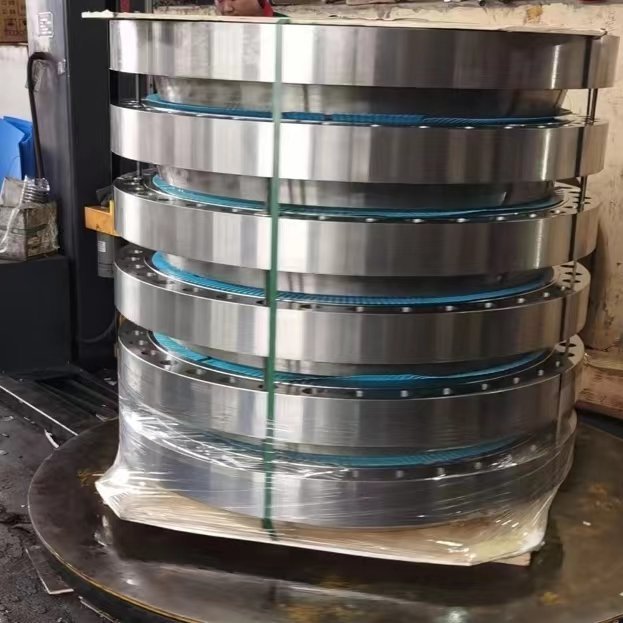

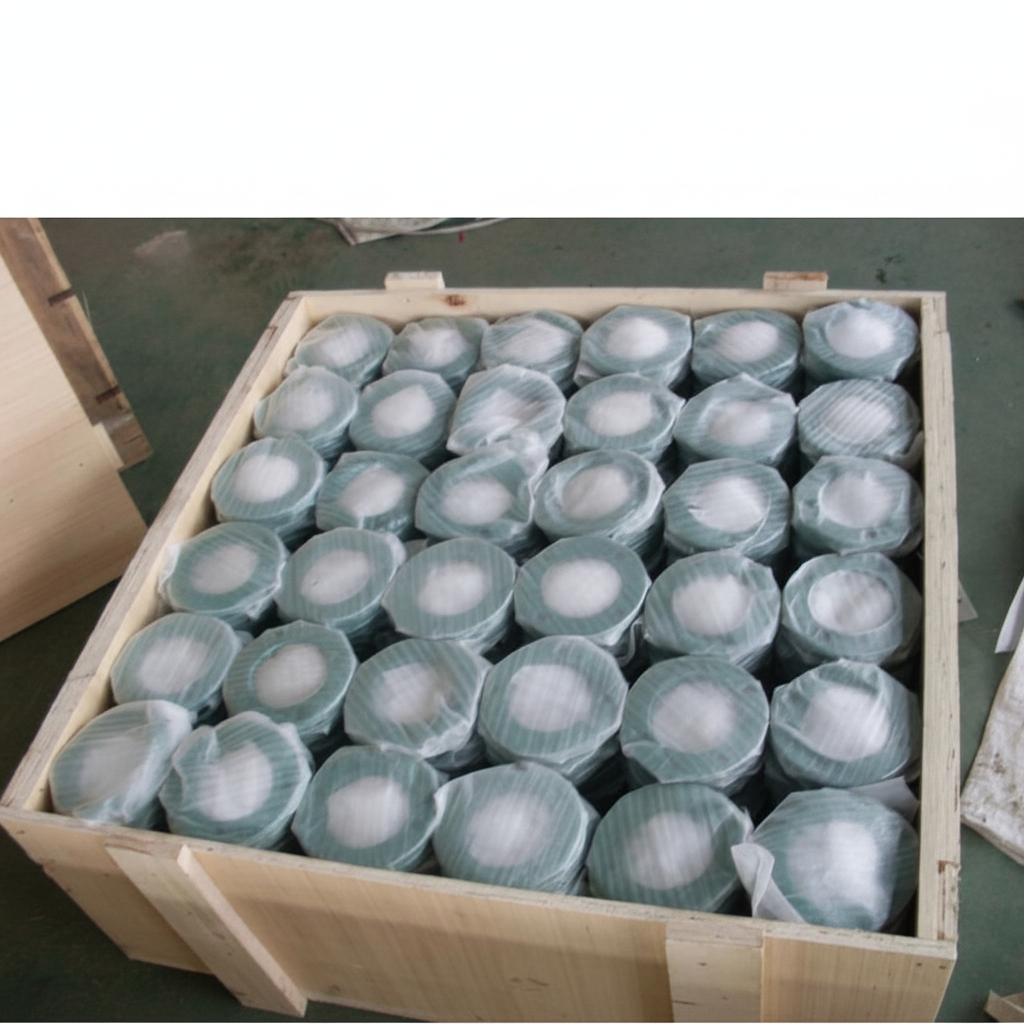

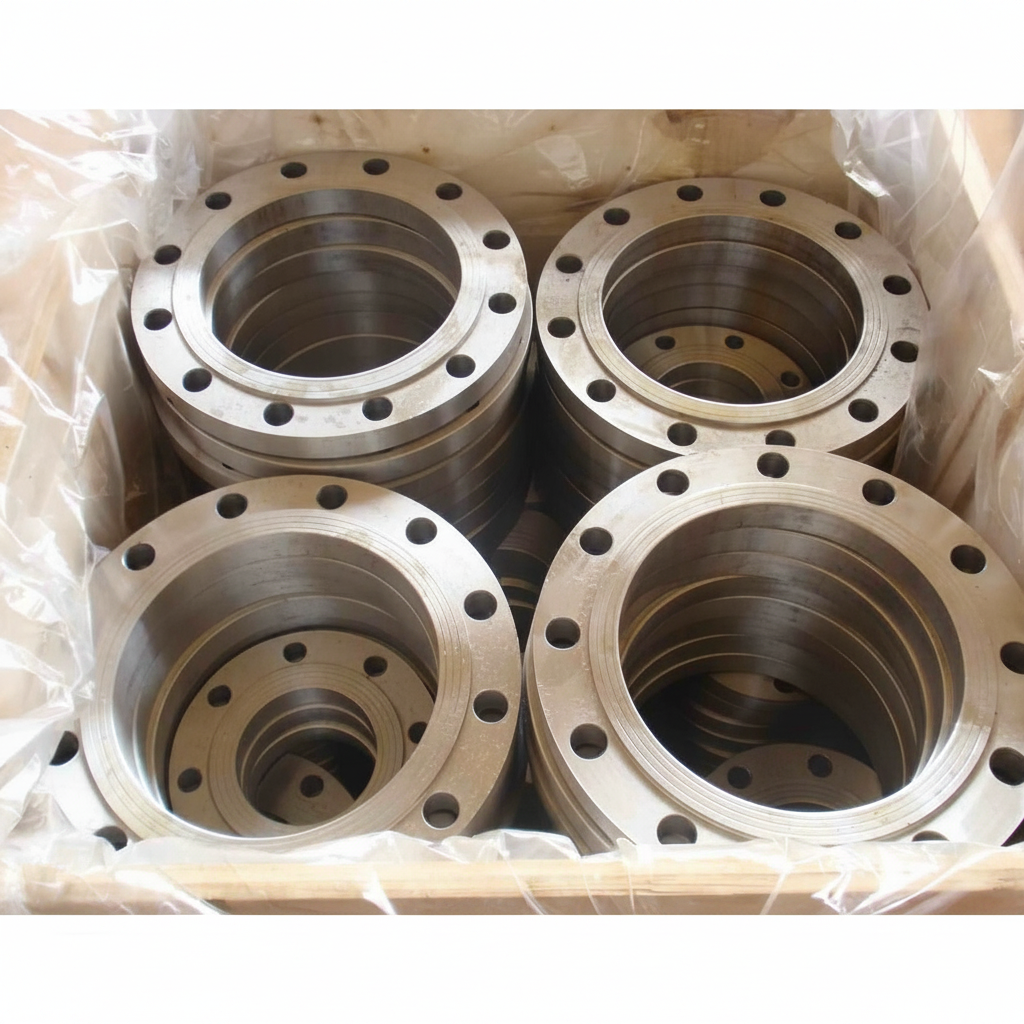

  • Packing — wooden cases or pallets for export, plastic film and protective covers over faces and bores, and customized packing when a project or a receiving port needs it.
  • Paperwork — tell us at enquiry stage what the project requires. We confirm what we can supply alongside the quotation rather than after the order is placed.
  • Lead time, payment terms and delivery schedule are confirmed on the quotation for your quantity and specification, so ask your sales contact for current terms before you fix a project date.
  • Talk to us before the drawing is frozen. As a flange supplier we would far rather answer a bolt-circle question today than remake a crate next month. Send your list, a drawing reference or a photo of the marking on an existing flange, and we will come back with a matched offer and the shipping detail that goes with it.

Supply Chain & Delivery Assurance

Ruihuang Pipe Technology Co., Ltd. has been manufacturing since 2009 and has been listed on the Shanghai Stock Exchange since December 2019 (stock code 100868). Five brands, more than 30 branches and sales networks across China, and over a hundred projects delivered together with Chinese enterprises give us the reach to gather the categories we supply into one order and one container, pack for export, plan production around your peak season, and ship from Shanghai to Southeast Asia, the Middle East, South Asia and West Asia on terms you prefer.

FAQ

Is the flange size the pipe size or the outside diameter?

It is the nominal pipe size — DN10 to DN2000, or 3/8 in. to 80 in. in inch terms. The outside diameter, bolt circle, bolt count and thickness all follow the standard table for that size and pressure class, so on an ANSI B16.5 flange a 6 in. Class 150 and a 6 in. Class 300 share the bore but not the rim. Give us the standard and the class with the size and the dimensions follow from the table.

Can a PN flange and a Class flange be bolted to each other?

Only by luck. PN and Class are two separate rating systems, each with its own dimension tables, so outside diameter and bolt circle do not always line up even when the pressure figures look comparable. Both flanges in a joint should come from the same system and the same class, and the marking stamped by the flange manufacturer is what an inspector will read on site. If one side of the joint already exists, send us its marking or a photo of the face and we will match it.

How do I identify a flange that is already on site?

Measure the outside diameter, the bolt circle and the bolt count, then note whether the face is raised, flat or grooved. Those four readings usually identify the table. A marking on the rim is faster still — a standard number, size and class stamped by the original flange supplier settles it in seconds. Send a photo of the face with a tape across the bolt circle and we can confirm what will mate with it.

Can a blind flange be drilled later to pass a pipe?

It can be machined, but the plate was sized to hold pressure as a solid disc, so drilling it changes what it is rated for. If you already know a branch will be tied in later, order the blind flange for the test and a separate drilled connection for the tie-in. That way the isolation keeps its rating and the future work is planned rather than improvised.

Will the flanges match the pipe and valves supplied on the same order?

Yes, if you send the whole set in one enquiry. We supply wholesale pipe flanges alongside pipe, valves, caps and fasteners, and the flanges are matched to the same standard and finish as the rest of the run — a galvanized flange on galvanized pipe, an ANSI pattern against an ANSI valve. Checking the standards against each other before packing is far cheaper than discovering a mismatch on site.
